Display

• Display diagonal: 55.9 cm (22″)
• Display resolution: 1680 x 1050 pixels
• HD type: WSXGA+
• Native aspect ratio: 16:10
• Display technology: LCD
• Panel type: TN
• Backlight type: LED
• Touchscreen: No
• Display brightness (typical): 250 cd/m²
• Response time: 5 ms
• Screen shape: Flat
• Supported graphics resolutions: 1680 x 1050 (WSXGA+)
• Contrast ratio (typical): 1000:1
• Contrast ratio (dynamic): 4000000:1
• Maximum refresh rate: 60 Hz
• Viewing angle, horizontal: 160°
• Viewing angle, vertical: 170°
• Display colors: 16.78 million colours
• Pixel pitch: 0.282 x 0.282 mm
• Pixel density: 90 ppi
• Horizontal scan range: 30 – 83 kHz
• Vertical scan range: 56 – 76 Hz
• Viewable size, horizontal: 47.4 cm
• Viewable size, vertical: 29.6 cm
• Viewable size diagonal: 55.9 cm
• Color gamut: 84%
• 3D compatibility: No

Performance

• NVIDIA G-SYNC: No
• AMD FreeSync: No

Multimedia

• Built-in speaker(s): No
• Built-in camera: No

Ports & interfaces

• USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
• Built-in USB hub: Yes
• USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1)
• USB upstream port type: USB Type-B
• Number of upstream ports: 1
• USB Type-A downstream ports quantity: 4
• VGA (D-Sub) ports quantity: 1
• HDMI: Yes
• HDMI ports quantity: 1
• HDMI version: 1.4
• DisplayPorts quantity: 1
• Headphone out: No

Ergonomics

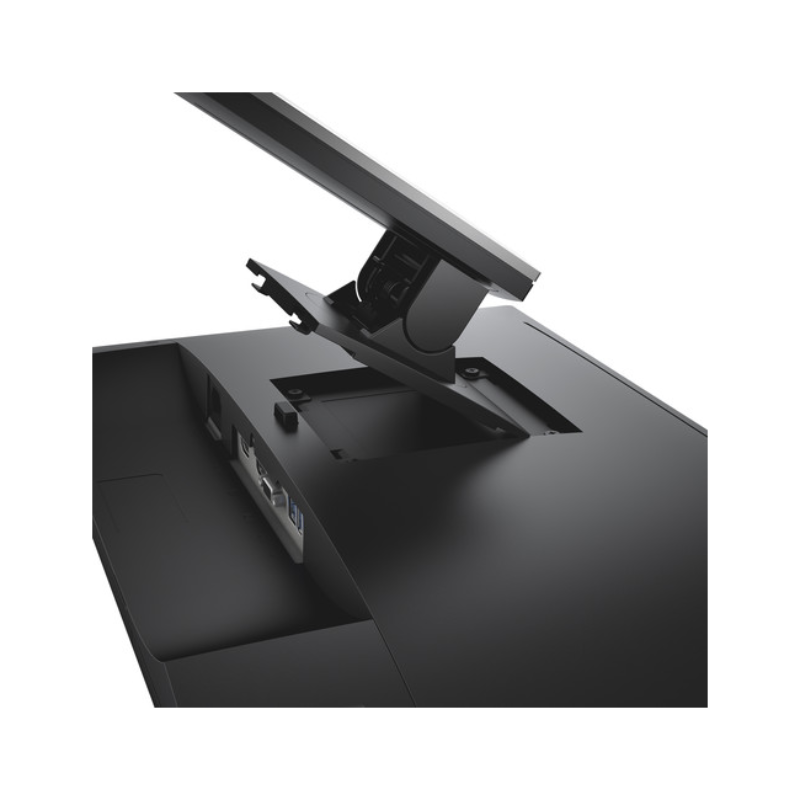

• VESA mounting: Yes
• VESA mounting interfaces: 100 x 100 mm
• Cable lock slot: Yes
• Height adjustment Yes
• Adjustable height (max): 13 cm
• Pivot Yes
• Swivelling Yes
• Swivel angle range: -45 – 45°
• Tilt adjustment: Yes
• Tilt angle range:-5 – 21°
• Plug and Play: Yes

Power

• Energy efficiency class (SDR): D
• Energy consumption (SDR) per 1000 hours: 13 kWh
• Power consumption (typical): 13.3 W
• Power consumption (standby): 0.2 W
• Power consumption (max): 37 W
• Power consumption (off): 0.2 W
• Power consumption (PowerSave): 15.2 W
• AC input voltage: 100 – 240 V
• AC input frequency: 50 – 60 Hz
• Input operating current: 1.5 A
• Energy efficiency scale: A to G
• Annual energy consumption: 25 kWh

Operational conditions

• Operating temperature (T-T): 0 – 40 °C
• Storage temperature (T-T): -20 – 60 °C
• Operating relative humidity (H-H): 20 – 80%
• Storage humidity: 10 – 90%
• Operating altitude: 0 – 5000 m
• Storage altitude: 0 – 12192 m

Weight & dimensions

• Width (with stand): 503.4 mm
• Depth (with stand): 180 mm
• Height (with stand): 497.4 mm
• Weight (with stand): 5.1 kg
• Width (without stand): 503.4 mm
• Depth (without stand): 50.3 mm
• Height (without stand): 330.4 mm
• Weight (without stand): 2.1 kg
