‘Build to Order’

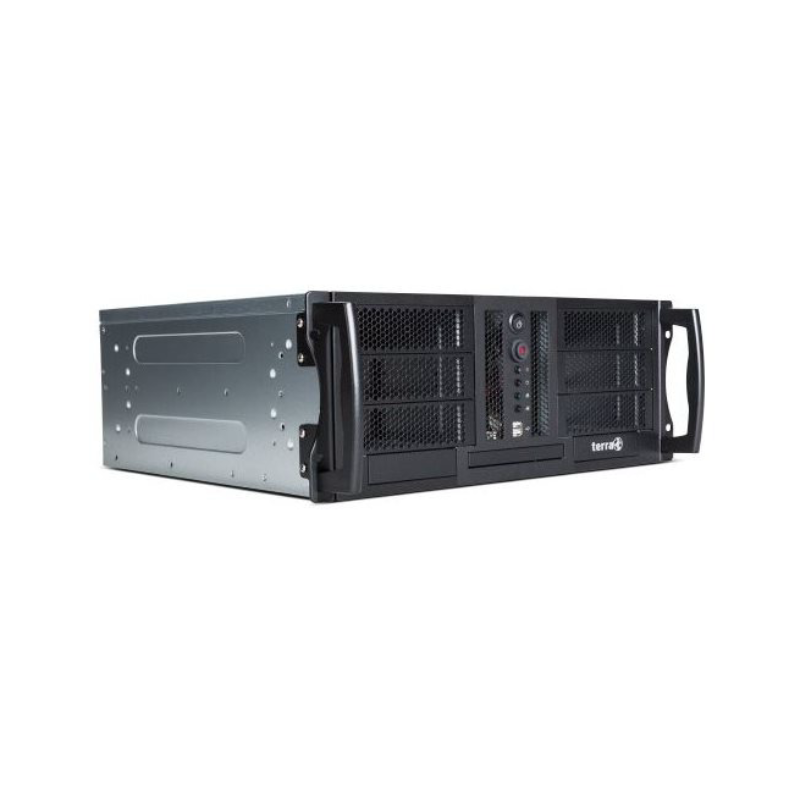

19″ system, optimized for industrial environments. Useable in 19″ racks or as a floor-mounted appliance. This very short 4U case delivers the opportunity to be fitted with dust-filters. The hardware platform is based upon the TERRA “Marathon-technology”. Optimized for 24-7 hours running times. 365 days a year. Special hardware for special demands Don?t settle for standard solutions for 24/7 requirements. Special requirements call for special hardware. Devices based on the TERRA Marathon technology platform help minimise expensive downtime and also offer high protections of your investment.
| General | |
| Processor model | Intel Core i5 (13. Gen.) 13500 / 24 MB Intel Smart Cache, max. 4.8 GHz Intel Turbo Boost Technology |
| Operating system | Windows 11 Pro |
| Software | |
| Pre-installed software | 1 month trial version for new Microsoft? 365 user |
| Processor | |
| Processor family | Core i5 |
| Processor cores | 14-Core |
| Processor socket | FCLGA1700 Socket |
| Number of processors | 1 |
| Memory | |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Maximum internal memory | 128 GB |
| Memory clock speed | PC4800 MHz |
| Internal memory type | DDR5 SDRAM |
| Memory slots | 4 |
| Memory form factor | DIMM 240-PIN |
| Storage | |
| Total storage capacity | 480 GB |
| HDD interface | 4x Serial-ATA III 600 (up to 6GBit/s), NCQ, AHCI, RAID 0/1/5/10 ? 2x M.2 2280 (Key-M) for PCIe/NVMe SSD modules incl. NVMe RAID 0/1 Support |
| RAID levels | RAID 0 RAID 1 RAID 5 RAID 10 RAID 1 RAID 5 RAID 10 |
| SSD interface | SATA-3 |
| SSD capacity | 480 GB |
| HDD capacity | 1x 480 GB SSD |
| Number of storage drives supported | 7 pc(s) |
| Storage media | SSD 2.5″ |
| Performance | |
| Series | Industry |
| Motherboard chipset | Intel R680E |
| Design | |
| Chassis type | Rack-mountable |
| Certification | ISO 9001, Assembled in Germany Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC |
| Keyboard form factor | Optional |
| Keyboard | |
| Keyboard language | Keyboard optional |
| Device interface | USB PS/2 |
| Technical details | |
| Localization | International |
| Packaging content | |
| Keyboard language | Option. Keyboard not included |
| Expansion slots | |
| Expansion slots | 1x PCIe x16 Gen5, 1x PCIe x16 @ x4 Gen4, 1x PCIe x8 @ x4 Gen4 “open slot”, 1x PCIe x8 @ x4 Gen3, 2x PCIe x1 Gen3, 1x PCI 32Bit (via PCI to PCIe Bridge) |
| Weight & dimensions | |
| Height | 17.6 cm |
| Width | 43 cm |
| Depth | 44.5 cm |
| Weight | 15.5 kg |
| Other features | |
| Interface | 4x DisplayPort V1.4a, Audio (Mic-in / Line-in/-out), 3x LAN (RJ-45), 4x USB 3.2 (Gen1), 2x USB 3.2 (Gen2), 1x USB-C 3.2 (Gen2), COM1 (RS232), Optional: COM 2+3+4 |
| Compatible operating systems | Windows 10, Windows 11 |
| Motherboard manufacturer | Kontron K3851-R 24-7 ready Made in Germany |
| Cooling type | Active |
| Compliance industry standards | CE, ISO 9001, Assembled in Germany Compatibility: PC2001, SMBios (DMI) 2.3, PCI 2.2,WFM 2.0, EnergyStar, EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC |
| Mouse | |
| Mouse included | TERRA Wheel optical by Cherry |
| Graphics | |
| On-board graphics adapter memory | Dynamic |
| On-board graphics adapter maximum resolution | Digital maximum resolution: 5120×2880 |
| Graphics card | Intel UHD Graphics 630 (1050 MHz) Intel UHD Graphics 630 (1050 MHz) |
| On-board graphics card model | Intel UHD Graphics 630 (1050 MHz) Intel UHD Graphics 630 (1050 MHz) |
| Graphics adapter ports | 4x DisplayPort V1.4a |
| Power | |
| Power source | ATX Netzteil 80 Plus Gold, 24-7 eligible Energy efficiency (Workload 20 %/ 50 % / 100 %): 87 %/ 90 % / 87 % |
| Maximum input power | 400 Watt |
| AC adapter input voltage | AC 100/240 V ( 50/60 Hz ) |
| Operational conditions | |
| Operating temperature (T-T) | 5 ?C – 35 ?C |
| Recommended humidity operating range | 10 – 75% (non-condensing) |
| Network | |
| Ethernet LAN | Network adaptor integrated |
| LAN controller | LAN 1: Intel i219LM with 10/100/1000 MBit/s (WoL, PXE, iAMT), LAN 2+3: Intel i225LM with 10/100/1000/2500 MBit/s (WoL, PXE) |
| Optical drive | |
| Optical drive type | DVD?RW |
| Input device | |
| Movement detection technology | Optical |
| Device interface | USB Note: Keyboard not included |
