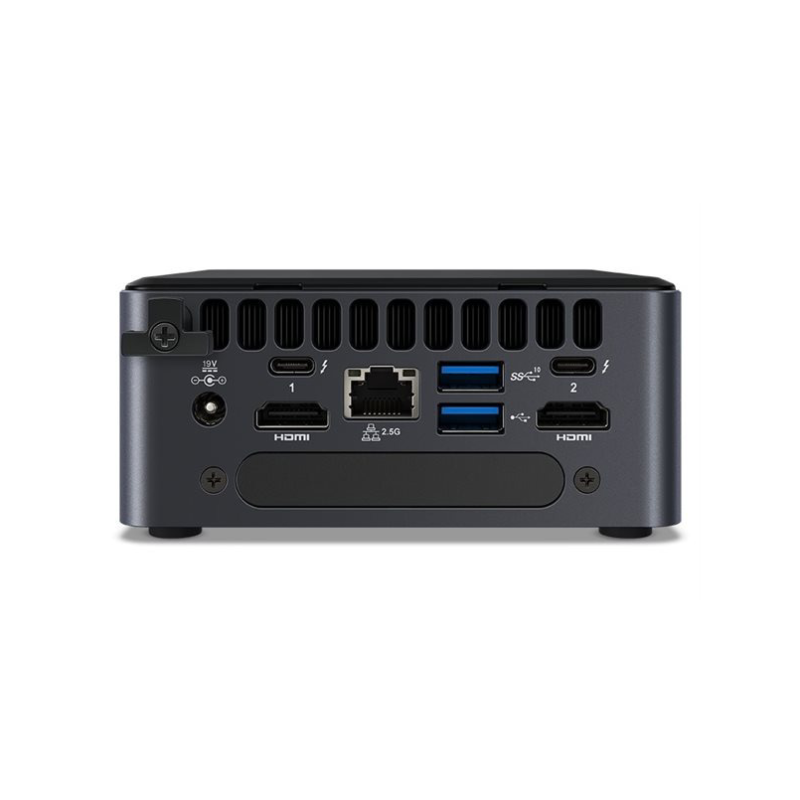

The TERRA PC-Micro system is an extremely compact, space-saving housing with a powerful Intel Core i3 processor and fast NVMe SSD storage medium. Included: VESA mounting kit for mounting behind an LCD monitor/ TV or on a wall or table mount.
Areas of application:
- Office and office applications
- Pharmacies, doctors, hotels, schools
| General | |
| Processor model | Intel Core i3-1115G4 Processor (6 MB Intel Smart Cache, up to 4.10 GHz) |
| Operating system | Windows 10 Pro |
| Software | |
| Operating system | Windows 10 Pro |
| Pre-installed software | 1-month trial version for new Microsoft® 365 user |
| Processor | |
| Processor family | Core i3 |
| Processor cores | Dual-Core |
| Processor socket | Embedded in SOC |
| Processor model | Intel Core i3-1115G4 Processor (6 MB Intel Smart Cache, up to 4.10 GHz) |
| Number of processors | 1 |
| Memory | |
| Internal memory | 8 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 64 GB |
| Memory clock speed | 3200 MHz |
| Internal memory type | DDR4 |
| Memory slots | 2 pc(s) |
| Memory form factor | SO DIMM, 260-PIN |
| Storage | |
| Total storage capacity | 250 GB |
| SSD interface | PCIe (NVMe) |
| SSD capacity | 250 GB |
| HDD capacity | 1 x 250 GB – SSD |
| Number of storage drives supported | 2 |
| Performance | |
| Series | Business |
| Product type | Personal-Computer |
| Noise level | 0.1 Sone (Idle Mode) 0.4 Sone (Operation Mode) |
| Audio output channels | HD audio via HDMI |
| Design | |
| Chassis type | Microformat |
| Certification | ISO 9001, Assembled in Germany Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC |
| Keyboard form factor | Option. Keyboard not included |
| Technical details | |
| Localization | International |
| Packaging content | |
| Included Accessories | Quick Install Guide, psu, VESA mounting kit |
| Weight & dimensions | |
| Height | 5.4 cm |
| Width | 11.2 cm |
| Depth | 11.7 cm |
| Weight | 0.5 kg |
| Other features | |
| Number of drive bays | 1 internal – 6.35 cm (2.5″) SSD or HDD |
| Interface | Front: 2x USB 3.2 Gen2 (1x Type-A, 1x Type-C/ Thunderbolt) Rear: 3x USB 3.2 Gen2 (2x Type-A, 1x Type C/ Thunderbolt), 1x RJ45 1x HDMI 2.0 1x MiniDP 1.4 1x DC-in |
| Compatible operating systems | Windows 10, Windows 11 |
| Cooling type | Active |
| Compliance industry standards | This appliance is classified as a Class B information technology equipment (ITE) and is intended primarily for use in residential and office environments. The CE mark confirms |
| Special features | TPM 2.0 |
| Mouse | |
| Mouse included | Optional |
| Graphics | |
| On-board graphics adapter maximum resolution | 4096×2304 @ 60 Hz |
| On-board graphics card model | Intel UHD Graphics for 11th Gen Intel Processors |
| Power | |
| Power source | External fanless power supply Efficiency : >= 85% |
| Power consumption (standby) | Ø 0.4 Watt (S5 Mode. Soft Off) W |
| Maximum input power | 120 Watt |
| Nominal power | Ø 5 Watt Long Idle-Mode Ø 25 kWh a year (TEC = Typical Energy Consumption) |
| AC adapter input voltage | AC 100/240 V ( 50/60 Hz ) |
| Operational conditions | |
| Operating temperature (T-T) | 0 °C – 40 °C |
| Recommended humidity operating range | 10 – 80% (non-condensing) |
| Network | |
| Ethernet LAN | RJ45 |
| Wi-Fi standards | Intel Wi-Fi 6 AX201 |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax Bluetooth 5.2 |
| Optical drive | |
| Optical drive type | w/o ODD |
