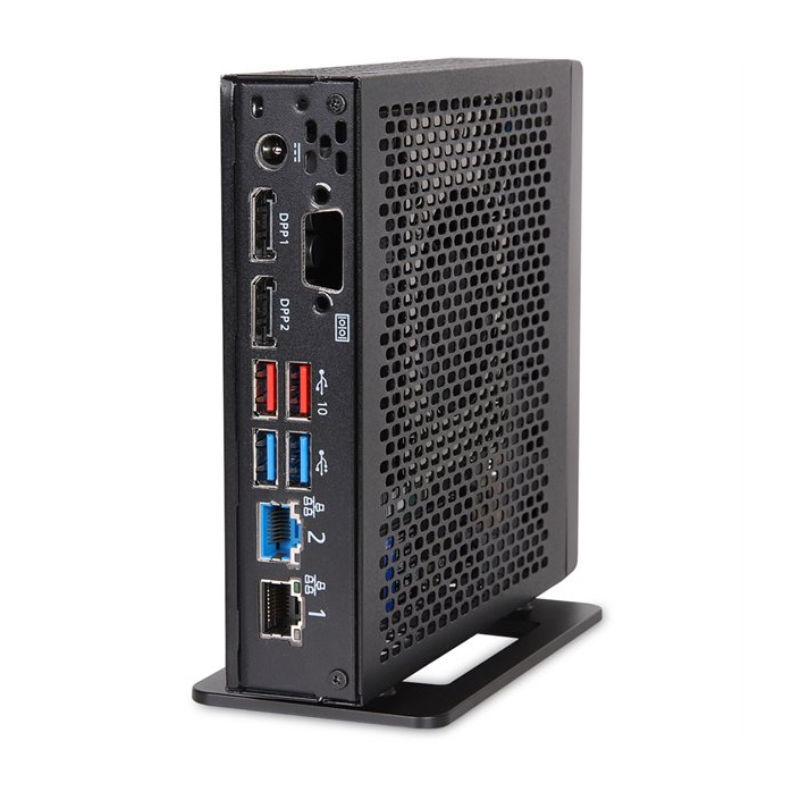

TERRA PC-Mini 3560 Fanless | Intel Core i3 N305 | 8GB RAM | 240GB SSD | Windows 11 Pro
TERRA PC-Mini 3560 Fanless | Intel Core i3 N305 | 8GB RAM | 240GB SSD | Windows 11 Pro
Processor
: Intel Core i3
RAM
: 8 GB
OS
: Windows 11 Pro
Product Warranty
Extended 2 Year Manufacturer warranty.
For Expert Advice contact sales.
Contact Sales
Find out more about this product.
Find out MoreAvailable payment methods:
SKU: 1000071
Tags: New Computers PCs Terra Terra PCs
Know someone who might like this?
Do you need help with your order?
For any information or help,
our sales team are always at
your service.
Full Spec
'Build to Order'
| General | |
| Processor model | Intel® Processor Core i3 N305/ 6M Cache, up to 3.80 GHz |
| Operating system | Windows 11 Pro |
| Software | |
| Pre-installed software | 1 month trial version for new Microsoft® Office 365 user |
| Processor | |
| Processor family | Pentium |
| Processor cores | Okta-Core (8-Core) |
| Processor socket | Embedded in SOC |
| Number of processors | 1 |
| Memory | |
| Internal memory | 8 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 8 GB |
| Memory clock speed | PC5600 MHz |
| Internal memory type | DDR5 |
| Memory slots | 1 pc(s) |
| Storage | |
| Total storage capacity | 240 GB |
| HDD interface | 1x M.2 PCIe 2230/2242/2280 (Key-M ,PCIe x2 Gen3/NVMe SSD modules) |
| SSD interface | SATA-3 |
| SSD capacity | 240 GB |
| HDD capacity | 1 x 240 GB - SSD |
| Number of storage drives supported | 1 pc(s) |
| Storage media | SSD M.2 |
| Performance | |
| Series | Industry Business |
| Noise level | 0 dB |
| Audio output channels | Stereo |
| Motherboard chipset | Alder Lake N SoC |
| Design | |
| Chassis type | Mini format |
| Certification | ISO 9001, Assembled in Germany Compatibility: SMBios (DMI), EnergyStar 8.0. EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC 24-7 ready (temporary fan-maintance required)/ 24-7 ready SSD required |
| Keyboard form factor | Optional |
| Keyboard | |
| Keyboard language | Keyboard optional |
| Device interface | USB |
| Technical details | |
| Localization | International |
| Field of use | Digital Signage |
| Packaging content | |
| Included Accessories | Quick Install Guide (DE/ EN), Driver CD, power supply, Europlug CEE7/16 1.8 m, Pedestal for vertical use Option: VESA mounting Kit |
| Weight & dimensions | |
| Height | 3.6 (4.2) cm |
| Width | 14.7 (18.8) cm |
| Depth | 16.5 (17.5) cm |
| Weight | 0.9 kg |
| Other features | |
| Interface | Front: 1x USB 3.2 Type A, 1x USB-C 3.2, 1x Audio Rear: 1x COM, 2x DP, 4x USB 3.2 Type A, 2x RJ45, DC-in, Kensington |
| Compatible operating systems | Windows 10 (64-Bit) Windows 11 (64-Bit) Unsupported OS by WAG: Linux (64-Bit) |
| Motherboard manufacturer | Kontron K3921-N6 (Core i3 N305) Industrial Series 24-7 ready Made in Germany |
| Cooling type | Passive - fanless |
| Compliance industry standards | CE, ISO 9001, Assembled in Germany Compatibility: PC2001, SMBios (DMI) 2.3, PCI 2.2,WFM 2.0, EnergyStar, EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC 24-7 ready (temporary fan-maintance required) |
| Special features | TPM 2.0, Fanless |
| Mouse | |
| Mouse included | Optional |
| Graphics | |
| On-board graphics adapter memory | Dynamisch GB |
| On-board graphics adapter maximum resolution | Display Port 1.2 max. 4096x2160 @ 60Hz |
| Graphics card | Intel® UHD Graphics |
| Graphics adapter ports | 2x Display Port (DP), 1x DP via USB-C supportsTriple-Monitoring |
| Power | |
| Power source | External fanless power supply |
| Power consumption (standby) | Ø 2.0 Watt (Sleep Mode S3. Suspend to RAM. WOL activated) 0.2 Watt Soft off (S5 Mode) W |
| Maximum input power | 24 W |
| Nominal power | Ø 6 Watt Long Idle-Mode Ø 27 kWh a year (TEC = Typical Energy Consumption) |
| AC adapter input voltage | AC 100/240 V ( 50/60 Hz ) |
| Operational conditions | |
| Recommended humidity operating range | 10 - 80% (non-condensing) |
| Network | |
| Ethernet LAN | Network adapter integrated |
| LAN controller | 1x Realtek RTL8111H, 10/100/1000 Mbps, WOL/PXE 1x Realtek RTL8125BG-CG with 10/100/1000/2500 MBit/s |
| Wi-Fi standards | Intel AX201 Wi-Fi 6/ /Bluetooth 1x portable external antennas 802.11ax Bands: 2.4 GHz + 5 GHz (Dual-Band) |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax Bluetooth 5.2 |
| Optical drive | |
| Optical drive type | Without optical drive |
