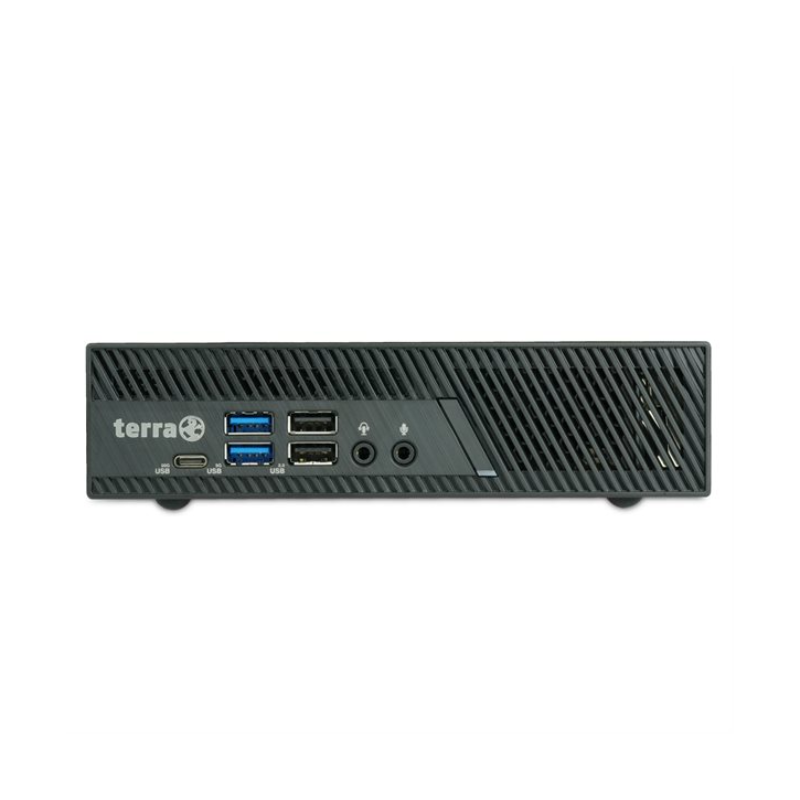

TERRA PC-Mini 5000V6.1 SILENT GREENLINE | Intel Core i3 14100 | 8GB RAM | 500GB SSD | Windows 11 Pro
TERRA PC-Mini 5000V6.1 SILENT GREENLINE | Intel Core i3 14100 | 8GB RAM | 500GB SSD | Windows 11 Pro
Processor
: Intel Core i3
RAM
: 8 GB
OS
: Windows 11 Pro
Product Warranty
Extended 2 Year Manufacturer warranty.
For Expert Advice contact sales.
Contact Sales
Find out more about this product.
Find out MoreAvailable payment methods:
SKU: 1000078
Tags: New Computers PCs Terra Terra PCs
Know someone who might like this?
Do you need help with your order?
For any information or help,
our sales team are always at
your service.
Full Spec
'Build to Order'
| General | |
| Processor model | Intel Core i3 (14th. Gen.) 14100 / 4 Cores / 8 Threads / 12 MB Intel Smart Cache / bis zu 4.7GHz |
| Operating system | Windows 11 Pro |
| Software | |
| Pre-installed software | 1 month trial version for new Microsoft® 365 user |
| Processor | |
| Processor family | Core i3 |
| Processor cores | Quad-Core (4 Core) |
| Processor socket | FCLGA1700 Socket |
| Number of processors | 1 |
| Memory | |
| Internal memory | 8 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 64 GB |
| Memory clock speed | PC4800 MHz |
| Internal memory type | DDR5 SDRAM |
| Memory slots | 2 pc(s) |
| Memory form factor | SO DIMM, 260-PIN |
| Storage | |
| Total storage capacity | 500 GB |
| HDD interface | 2x M.2 (2280) PCIe/NVMe Gen4 1x 2.5" SATA 6Gb/s (max 7mm height) |
| RAID levels | No Raid support |
| Card reader integrated | Not available |
| SSD interface | PCIe (NVMe) |
| SSD capacity | 500 GB |
| HDD capacity | 1 x 500 GB - SSD |
| Number of storage drives supported | 2 |
| Storage media | SSD M.2 |
| Performance | |
| Series | Business |
| Noise level | 21.7 dB(A) Idle mode fan speed 2100 rpm, 31.5 dB(A) Operation mode fan speed 2900 rpm, measuring distance according to DIN EN ISO 7779: 0.5m |
| Motherboard chipset | Intel B760 |
| Audio system | High Definition Audio |
| Design | |
| Chassis type | Mini format |
| Certification | ISO 9001, Assembled in Germany Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC 24-7 ready (temporary fan-maintance required) |
| Keyboard form factor | Option. Keyboard not included |
| Technical details | |
| Localization | International |
| Field of use | Digital Signage |
| Packaging content | |
| Included Accessories | Quick Install Guide (DE/ EN/ FR), Driver CD, PSU, WiFi Antenna, stand, VESA Mounting Kit incl. screws |
| Keyboard language | Option. Keyboard not included |
| Weight & dimensions | |
| Height | 4.2 cm |
| Width | 17.5 cm |
| Depth | 17.5 cm |
| Weight | 1185 g |
| Other features | |
| Interface | Front: 2x USB 3.2 Type-A, 1x USB 3.2 Type-C, 2x USB 2.0 Type-A, 1x Audio Rear: 2x USB 3.2 Type-A, 1x USB 2.0 Type-A. 1x LAN, DC-in, 2x DP 1.4, 1x HDMI (exchangeable with COM or 2nd LAN port), 1x Kensington Lock, 1x WiFi Antennen Port |
| Compatible operating systems | Windows 10, Windows 11 |
| Cooling type | Active |
| Compliance industry standards | This appliance is classified as a Class B information technology equipment (ITE) and is intended primarily for use in residential and office environments. The CE mark confirms conformity with the following EU directives: (1) EMC Directive 2004/108/EC Electromagnetic Compatibility (2) Low Voltage Directive 2006/95/EC Electrical equipment designed for use within certain voltage limits. |
| Special features | 1 watt internal speaker Secure Boot TPM 2.0 Microsoft Autopilot-ready Barbone MIL-STD-810H Barebone 24-7 ready Option: Dust filter |
| Mouse | |
| Mouse included | Optional |
| Graphics | |
| On-board graphics adapter memory | Dynamic GB |
| On-board graphics adapter maximum resolution | HDMI 4096x2160 @ 60Hz (4K), Display Port 3840x2160 @ 60Hz (4K) |
| Graphics card | Intel UHD Graphics 730 (1130 MHz) |
| On-board graphics card model | Intel UHD Graphics 730 (1130 MHz) |
| Graphics adapter ports | 2x Display Port 1.4, 1x HDMI 2.0 |
| Power | |
| Power source | External fanless power supply Efficiency : > 87% |
| Power consumption (standby) | Ø 1.70 Watt (S3 Mode. Suspend to RAM. WOL aktiviert) 0.40 Watt Soft off (S5 Mode) W |
| Maximum input power | 150 Watt |
| Nominal power | Ø 10 Watt Idle-Mode Ø 40 kWh pro Jahr (TEC = Typical Energy Consumption) |
| AC adapter input voltage | AC 100/240 V ( 50/60 Hz ) |
| Operational conditions | |
| Operating temperature (T-T) | 5 °C - 50 °C Note: In environments with an operating temperature above 40°, SSD-drives and SO-DIMM-memories with an advanced range of temperature are recommended! |
| Maximum operating temperature range (T-T) | 50 °C Note: In environments with an operating temperature above 40°, SSD-drives and SO-DIMM-memories with an advanced range of temperature are recommended! |
| Recommended humidity operating range | 10 - 80% (non-condensing) |
| Network | |
| Ethernet LAN | Network adaptor integrated |
| LAN controller | Intel I219V, WOL/PXE |
| Wi-Fi standards | Intel AX211 Wi-Fi 6E (802.11ax) Bluetooth 5.3 |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet, 1Gb Ethernet, IEEE 802.11ax Bluetooth 5.3 |
| Optical drive | |
| Optical drive type | Without optical drive |
| Input device | |
| Device interface | USB Note: Keyboard not included |
