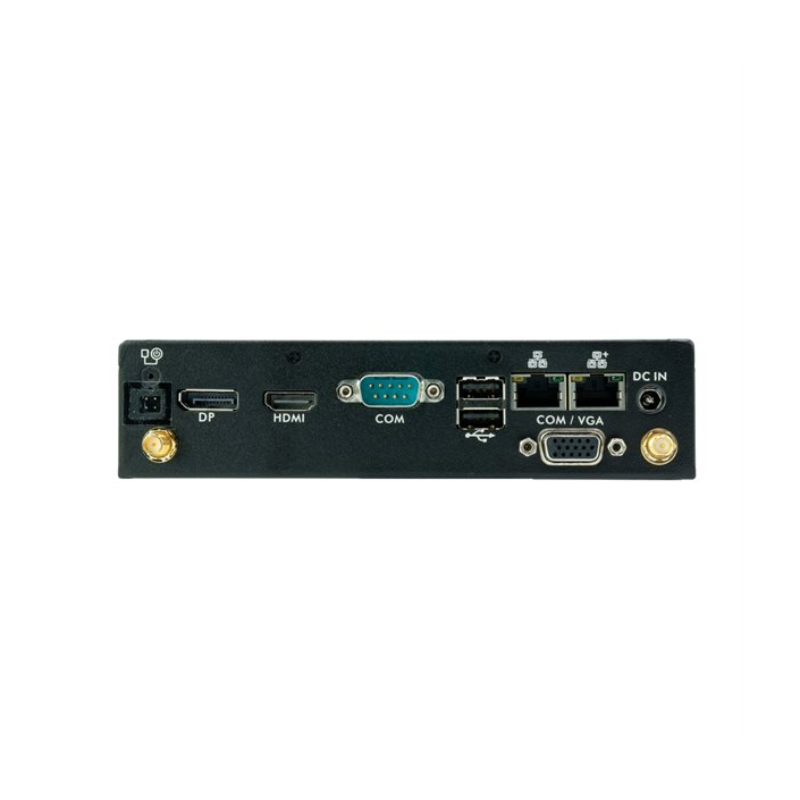

TERRA PC-Mini 6000PV4 | Intel Core i5 1335U | 16GB RAM | 500GB SSD | Windows 11 Pro
TERRA PC-Mini 6000PV4 | Intel Core i5 1335U | 16GB RAM | 500GB SSD | Windows 11 Pro
Processor
: Intel Core i5
RAM
: 16 GB
OS
: Windows 11 Pro
Product Warranty
Extended 2 Year Manufacturer warranty.
For Expert Advice contact sales.
Contact Sales
Find out more about this product.
Find out MoreAvailable payment methods:
SKU: 1000049
Tags: New Computers PCs Terra Terra PCs
Know someone who might like this?
Do you need help with your order?
For any information or help,
our sales team are always at
your service.
Full Spec
'Build to Order'
| General | |
| Processor model | Intel® Core™ i5-1335U Processor (12 MB Intel Smart Cache, bis zu 4.60 GHz) |
| Operating system | Windows 11 Pro |
| Software | |
| Pre-installed software | 1 month trial version for new Microsoft® 365 user |
| Processor | |
| Processor family | Core i5 |
| Processor cores | Okta-Core (8-Core) |
| Processor socket | Embedded in SOC |
| Number of processors | 1 |
| Memory | |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Maximum internal memory | 64 GB |
| Memory clock speed | 3200 MHz |
| Internal memory type | DDR5 |
| Memory slots | 2 |
| Memory form factor | SO-DIMM, 262-IN |
| Storage | |
| Total storage capacity | 500 GB |
| HDD interface | 1x SATA 6Gb/s, 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280/2260/2242) |
| Card reader integrated | Yes |
| SSD interface | PCIe (NVMe) |
| SSD capacity | 500 GB |
| HDD capacity | 1x 500 GB NVMe SSD |
| Compatible memory cards | SD/ SDHC/ SDXC |
| Number of storage drives supported | 2 |
| Storage media | SSD M.2 |
| Performance | |
| Series | Industry Micro/ Mini Format Business |
| Audio output channels | Stereo |
| Audio system | High Definition Audio |
| Design | |
| Chassis type | Mini format |
| Keyboard form factor | Optional |
| Technical details | |
| Localization | International |
| Field of use | Digital Signage |
| Packaging content | |
| Included Accessories | Quick Install Guide, Driver CD, external psu VESA mounting kit, Pedestal for vertical use |
| Keyboard language | Optionally |
| Expansion slots | |
| Expansion slots | 1x M.2 Typ 2242/ 2260/ 2280 (PCIe/ SATA) 1x M.2-2230E Slot for WiFi/BT Modul |
| Weight & dimensions | |
| Height | 3.95 cm |
| Width | 16.5 cm |
| Depth | 20 cm |
| Weight | 1.60 kg |
| Other features | |
| Interface | Option: COM 2-Port instead of VGA-connector |
| Compatible operating systems | Windows 10 (64-Bit) Windows 11 (64-Bit) Unsupported OS by WAG: Linux (64-Bit) |
| Cooling type | Passive - fanless |
| Compliance industry standards | CE, ISO 9001, Assembled in Germany Compatibility: PC2001, SMBios (DMI) 2.3, PCI 2.2,WFM 2.0, EnergyStar, EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC 24-7 ready (temporary fan-maintance required) |
| Special features | Fanless Heatpipe Kensington Lock (side) TPM 2.0 Option: 19" mounting Option: WiFi/ Bluetooth |
| Mouse | |
| Mouse included | Optional |
| Graphics | |
| On-board graphics adapter memory | Dynamisch GB |
| On-board graphics adapter maximum resolution | HDMI 4K @60Hz DP 4K @60Hz VGA 1920x1200 |
| Graphics card | Intel Iris Xe Graphics |
| Graphics adapter ports | 1x HDMI, 1x DP (Display Port), 1x VGA Supports Triple-Monitoring |
| Power | |
| Power source | External fanless power supply |
| Maximum input power | 90 W |
| Nominal power | Ø 8 Watt Long Idle-Mode Ø 38 kWh a year (TEC = Typical Energy Consumption) |
| AC adapter input voltage | AC 100/240 V ( 50/60 Hz ) |
| Operational conditions | |
| Operating temperature (T-T) | 0 °C - 40 °C |
| Recommended humidity operating range | 10 - 80% (non-condensing) |
| Network | |
| Ethernet LAN | Network adaptor |
| LAN controller | 1x Intel i219LM + 1x Intel i211 Supports WOL, PXE Supports Teaming |
| Data link protocols | Ethernet Fast Ethernet Gigabit Ethernet |
| Optical drive | |
| Optical drive type | Without optical drive |
