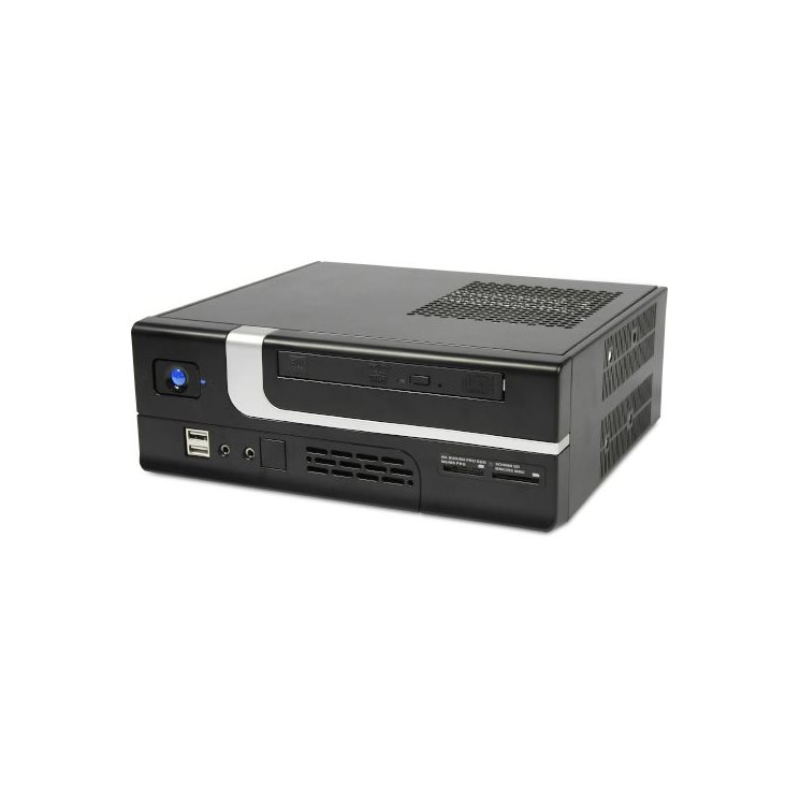

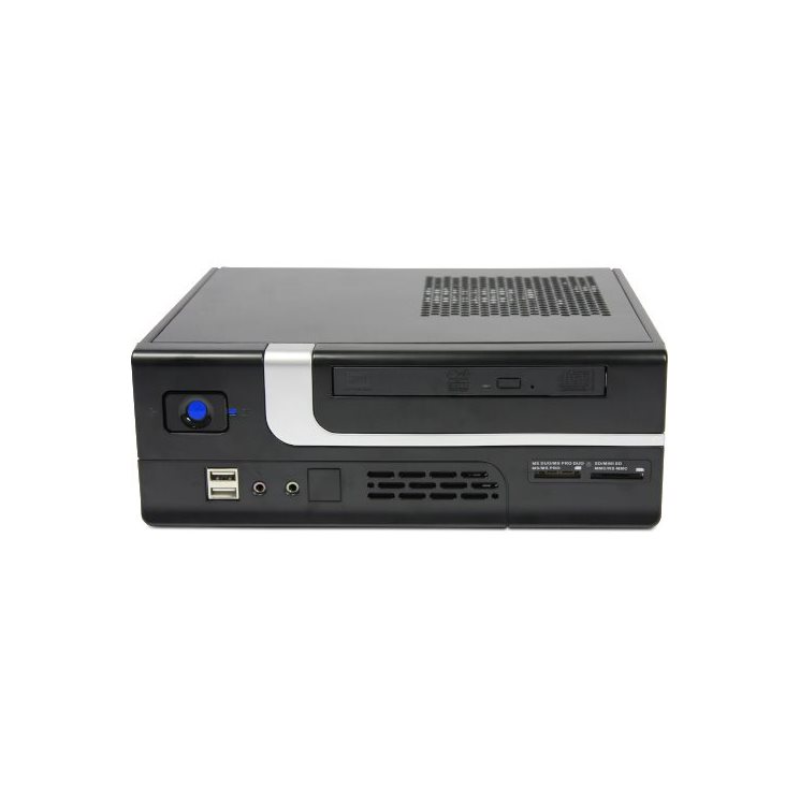

TERRA Mini-ITX PC with 12th Gen. Intel Core™ i5 Processor and M.2 PCIe SSD storage. Space saving and efficient, in the small Mini-ITX Format. Perfect suitable for work environment where is not much space but yet not relinquish good performance.
| General | |
| Processor model | Intel Core i5 (12. Gen.) 12400T / 1.8 GHz max. 4.2 GHz Intel Turbo Boost Technology, 18 MB Intel Smart Cache |
| Operating system | Windows 11 Pro |
| Software | |
| Pre-installed software | 1 month trial version for new Microsoft® 365 user |
| Processor | |
| Processor family | Core i5 |
| Processor cores | Hexa-Core (6 Core) |
| Processor socket | FCLGA1700 Socket |
| Number of processors | 1 |
| Memory | |
| Internal memory | 8 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 64 GB |
| Memory clock speed | 3200 MHz |
| Internal memory type | DDR4 SDRAM |
| Memory slots | 2 |
| Storage | |
| Total storage capacity | 500 GB |
| HDD interface | 1x M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 4x SATA 6Gb/s connectors |
| RAID levels | No RAID supported |
| SSD interface | PCIe (NVMe) |
| SSD capacity | 500 GB |
| HDD capacity | 1 x 500 GB - SSD |
| Storage media | SSD M.2 |
| Performance | |
| Series | Business - Mini-ITX |
| Noise level | 25.4 dB(A) Operation office-mode w/o ODD running |
| Audio output channels | 8-channel |
| Motherboard chipset | Intel H610 |
| Design | |
| Chassis type | Mini ITX |
| Certification | ISO 9001, Assembled in Germany Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC |
| Keyboard form factor | Option. Keyboard not included |
| Keyboard | |
| Keyboard language | Keyboard not included |
| Device interface | USB PS/2 |
| Technical details | |
| Localization | International |
| Packaging content | |
| Included Accessories | Quick Start Guide, Powercord EU |
| Keyboard language | Option. Keyboard not included |
| Weight & dimensions | |
| Height | 8.8 cm |
| Width | 25.4 cm |
| Depth | 21.9 cm |
| Weight | 3.5 kg |
| Other features | |
| Interface | 2x USB 3.2 Gen 2 ports*, 4 x USB 3.2 Gen1 ports* (2x front), 4x USB 2.0 ports* *(Type-A) 1x HDMI 2.1, 1x Display port 1.4, 1x VGA, 1x RJ45, 3x Audio jacks, 1x PS/2 Option: 1x COM, 1x TPM SPI |
| Compatible operating systems | Windows 10, Windows 11 |
| Motherboard manufacturer | ASUS PRIME H610I-PLUS D4 CSM 24-7 ready |
| Cooling type | Active |
| Special features | TPM 2.0 Secure Boot 2x USB 3.2 Gen1 Typ A + Audio in Front |
| Mouse | |
| Mouse included | TERRA Wheel optical by Cherry |
| Graphics | |
| On-board graphics adapter memory | Dynamic |
| On-board graphics adapter maximum resolution | HDMI 4K @60Hz DP 4K @60Hz VGA 1920x1200 |
| Graphics card | Intel UHD Graphics 730 |
| On-board graphics card model | Intel UHD Graphics 730 |
| Graphics adapter ports | 1x HDMI, 1x DP (Display Port), 1x VGA Supports Triple-Monitoring |
| Power | |
| Power source | Flex ATX PSU 80 Plus Gold, 24-7 eligible Power efficiency 87% (Full Load 100%) / 90% (Typical Load 50%) / 87% (Light Load 20%) |
| Power consumption (standby) | Ø 0.9 Watt (S3 Mode, Suspend to RAM, WOL activated) 0,30 Watt Soft off (S5 Mode) |
| Maximum input power | 300 W |
| Nominal power | Ø 15 Watt Long Idle-Mode Ø 70 kWh a year (TEC = Typical Energy Consumption) |
| AC adapter input voltage | AC 100/240 V ( 50/60 Hz ) |
| Operational conditions | |
| Operating temperature (T-T) | 5 °C - 35 °C |
| Recommended humidity operating range | 10 - 75% (non-condensing) |
| Network | |
| Ethernet LAN | RJ45 |
| LAN controller | Realtek RTL8111C |
| Data link protocols | Ethernet Fast Ethernet Gigabit Ethernet |
| Optical drive | |
| Optical drive type | Slim DVD±RW/±R |
| Input device | |
| Movement detection technology | Optical |
| Device interface | USB Note: Keyboard not included |
