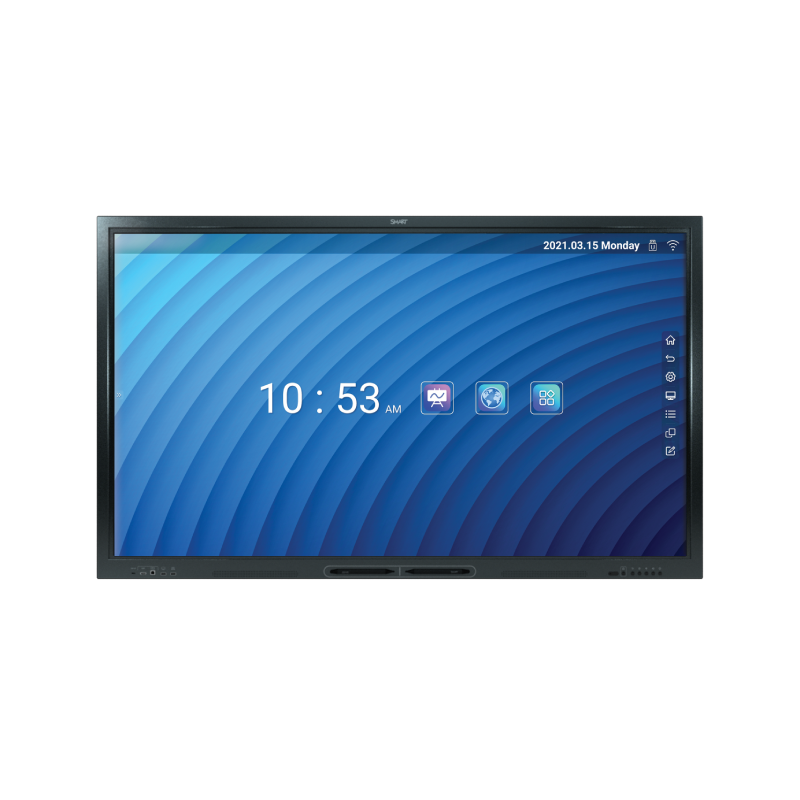

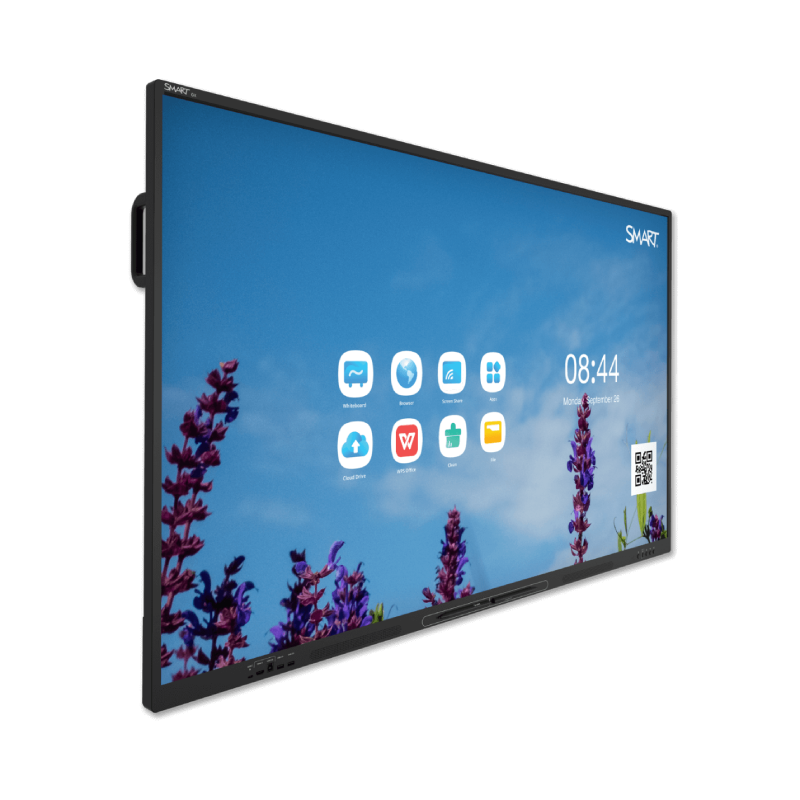

SMART GX Interactive Board

SMART GX series brings reliable interactivity to your classroom from the makers of the original SMART Board - interactive whiteboard. It combines the creative power of SMART Notebook, with multitouch interaction and SMART Ink - plus an embedded Android system - to deliver rich and engaging learning experiences.

Touch Designed For Learning


With 20 points of interaction, teachers and students can interact and collaborate with ease. Object awareness™ means pens write, fingers move, and palms erase, so teachers can focus on teachable moments with no technology distractions.

Flexibly annotate over anything


SMART's best-in-class persistent ink tools for both Windows AND Mac easily add digital ink and presentation tools to the files and applications your teachers already know and use - without freezing the screen or blocking navigation with an overlay.

SMART Notebook


Award-winning desktop software for creating engaging learning experiences with your SMART Board - no subscription required. With SMART Notebook, delivering exciting, engaging lessons has never been easier.

Integrate Student Devices With Ease


Let students share ideas and class work from connected student devices using app-based screen sharing. Teachers can guide learning with touchback to Windows and Mac computers.

No computer needed


Walk up and teach. Browse the web, and use the whiteboard, apps and widgets to increase student engagement. Access your documents with cloud storage, use WPS office and more. All on an embedded platform with the power and security of Android.

Windows, Mac, Chrome and more


Interoperability with leading operating systems and front-facing connection ports makes it easy for students and teachers to connect, interact and share.

USB-C supports video, touch and audio easy connectivity with only one cord.

Use SMART Ink with Windows & Mac, or write over any other input and capture your work with the built-in Android ink overlay app.

Technical Specifications
Display

• Available Screen sizes (diagonal): 65", 75", 86"
• Maximum display resolution: 4K UHD (3840 x 2160)
• Refresh rate: 60 Hz
• Lifespan: ≥ 50,000 hours
• Backlight: LED
• Brightness (maximum): 400 cd/m2
• Response time: ≤ 8 ms
• Viewing angle: 178°
• Glass: Fully heat-tempered anti-glare glass that resists smudges and fingerprints
• Convenience buttons: Power, home, volume, settings / freeze frame, back
• Sensors: Ambient light, infrared
• Audio: 2 integrated 15 W speakers
• Remote control: Included
• Weight: 65": 42 kg, 75": 58 kg, 86": 77 kg

Interactive experience

• Touch technology: Advanced infrared
• Touch features: Simultaneous tool differentiation, Object Awareness, Silktouch
• Typical touch response: ≤ 8 ms time
• Frame rate: ≥ 125 Hz
• Accuracy: 1 mm
• Minimum object size: 2 mm
• Multitouch capabilities: 40 – Windows®, 32 – AndroidTM, 20–Mac, 10 – Chrome OS
• Tools included: Pens (×2)
• Tool holders: Magnetic | Frame-mounted

Built-in Android™ experience

• Operating system: Android version 13
• Memory: 3 GB DDR
• Storage: 32 GB
• Features: Digital whiteboard, Web browser, Screen sharing, Input select, File manager, Overlay, Interactive widgets, App library, Google Drive™ and OneDrive™ access
• Updates: Over-the-air (OTA)

Connectivity

• Wired: RJ45 (2) 100baseT
• Wi-Fi: IEEE 802.11 a/b/g/n/ac with 2 x 2, MIMO (both 2.4 and 5 GHz bands) supporting WEP, WPA,
• WPA2 PSK, and 802.1X EAP authentication protocols, Wi-Fi access point
• Bluetooth: 4.2 dual mode

Inputs/outputs

• Inputs HDMI 2.0, 3 (HDCP 1.4 and 2.2), Display Port, VGA, YPbPr 3.5 mm, AV 3.5 mm, Stereo 3.5 mm, RS-232, RJ45 x2, USB Type-C, USB-A 2.0 x3, USB-A 3.0, USB-B 2.0 x2
• Outputs: AV 3.5 mm, S/PDIF, Stereo 3.5 mm
• OPS slot: Supporting up to 60 W
• Optional computing modules: SMART OPS PC with Windows 10 Pro, SMART Chromebox
