SMART GX Plus Interactive Board

Unlock the power of SMART in your classroom

SMART GX Plus is the well-equipped, affordable option from the makers of the original SMART Board® interactive display. Backed by SMART quality, get the essential teaching tools you need and the peace of mind you deserve.

Touch designed for learning

With up to 50 points of interaction, teachers and students can interact and collaborate with ease. Object awareness™ means pens write, fingers move, and palms erase, so teachers can focus on teachable moments with no technology distractions.

Flexibly annotate over everything

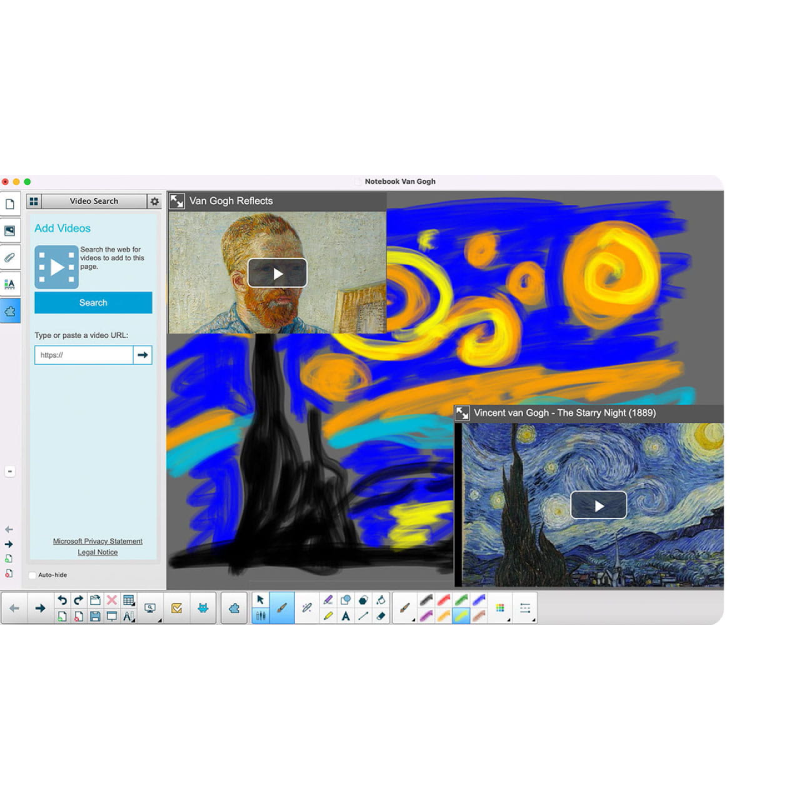

SMART’s best-in-class persistent ink tools for Windows and Mac easily add digital ink and presentation tools to the files and applications your teachers already know and use. Only SMART Ink provides multi-window support, so your annotations stay where you want them.

No computer needed

Walk up and teach. Browse the web, and use the whiteboard, apps and widgets to increase student engagement. Enjoy powerful interoperability for Google for Education, Microsoft Office 365 apps, and all the other Android apps and education resources teachers know and love. All on an embedded platform with the power and security of Android.

Integrate student devices with ease

Let students share ideas and classwork from connected student devices. Teachers can guide learning with touchback to Windows and Mac computers.

Works with your preferred platform

Windows, Mac, Chrome and more: interoperability with leading operating systems and front-facing connection ports make it easy for students and teachers to connect, interact and share.

USB-C supports video, touch and audio easy connectivity with only one cord.

Use SMART Ink with Windows & Mac, or write over any other input and capture your work with the built-in Android ink overlay app.

Technical Specifications
Display

• Screen sizes (diagonal): 65" | 75" | 86"
• Backlight: LED
• Aspect ratio: 16:9
• Maximum display: 4K UHD (3840 × 2160) resolution
• Refresh rate: 60 Hz
• Lifespan: ≥ 50,000 hours
• Brightness: 400 cd/m2
• Display response time: ≤ 8 ms
• Viewing angle: 178°
• Glass: Full heat-tempered | Anti-glare | Bonded
• Frame color: White
• Convenience buttons: Power | Home | Volume | Input select | Freeze frame
• Sensors: Ambient light | Infrared
• Audio: 2 integrated 20W speakers with high fidelity audio

Interactive experience

• Touch technology: Advanced infrared
• Touch features: Simultaneous tool differentiation, Object Awareness, Silktouch
• Typical touch response: ≤ 2.5 ms time
• Frame rate: ≥ 400 Hz
• Accuracy: 1 mm
• Minimum object size: 2 mm
• Multitouch capabilities: Up to 50 touch points (OS dependent)
• Tools included: Pens (×2)
• Tool holders: Magnetic | Frame-mounted

Embedded Android OS

• Operating system: Android version 14.0 (forward compatible)
• CPU: Octa-core
• Memory: 8 GB DDR4
• OS architecture: 64-bit
• Storage: 64 GB (up to 576 GB)
• User interface: 4K UHD (3840 × 2160)
• Digital whiteboard: Yes
• Web browser: Yes
• Screen sharing: Yes
• Google PlayTM Protect Certified: Yes
• Google Play Store: Yes
• Other features: Input select, File manager, Overlay, Split screen, Picture-in-picture (PIP) with touch pass-through, Interactive widgets App library
• Ability to run third-party applications: Yes
• Cloud storage access: Yes

Inputs

• OPS PC accessory slot: 1
• microSD slot: 1
• HDMI® 2.1 4K@ 60Hz with HDCP 1.4, 1 2 HDCP 2.2/2.3, and ARC support: 3
• Display Port 1.4a with HDCP 1.4 and HDCP – 1 2.2/2.3 support: 1
• VGA video: 1
• Stereo 3.5 mm: 1
• RS-232 (DB-9 connector): 1
• RJ45 (LAN In): 1
• USB Type-C 4K @ 60Hz Display Port alternate mode, touch, digital audio, USB 3.2 Gen 1 (DFP) for peripherals; up to 65 W power delivery: 1
• USB Type-C 4K @ 60Hz Display Port alternate mode, touch, digital audio, USB 2.0 Hi-Speed: 1
• USB 2.0 Type-A: 1
• USB 3.2 Gen 1 Type A: 4
• USB 2.0 Type-B: 2
• USB 3.0 Type-B: 1

Outputs

• HDMI 2.1 4K @ 60Hz with HDCP 1.4 and 2.3 support: 1
• USB Type-C 4K @ 60Hz Display Port alternate mode: 1
• Stereo 3.5 mm (variable): 1
• S/PDIF optical (fixed): 1
• RJ45 (LAN Out): 1

Connectivity

• Wired: RJ45 (×2) 1000BASE-T
• Wi-Fi: IEEE 802.11ax (Wi-Fi 6) supporting WEP, WPA, WPA2, WPA3 PSK, and 802.1X EAP authentication protocols Wi-Fi access point
• Bluetooth: 5.2

Storage and operating requirements

• Power requirements: 115V AC, 60 Hz
• Operating temperature: 32–104°F (0–40°C)
• Storage temperature: 14–140°F (-10–60°C)
• Humidity: 20–80% relative humidity, non-condensing

Power consumption

• Typical 65": 82 W 75": 107 W 86": 130 W
• Standby: 0.2 W
