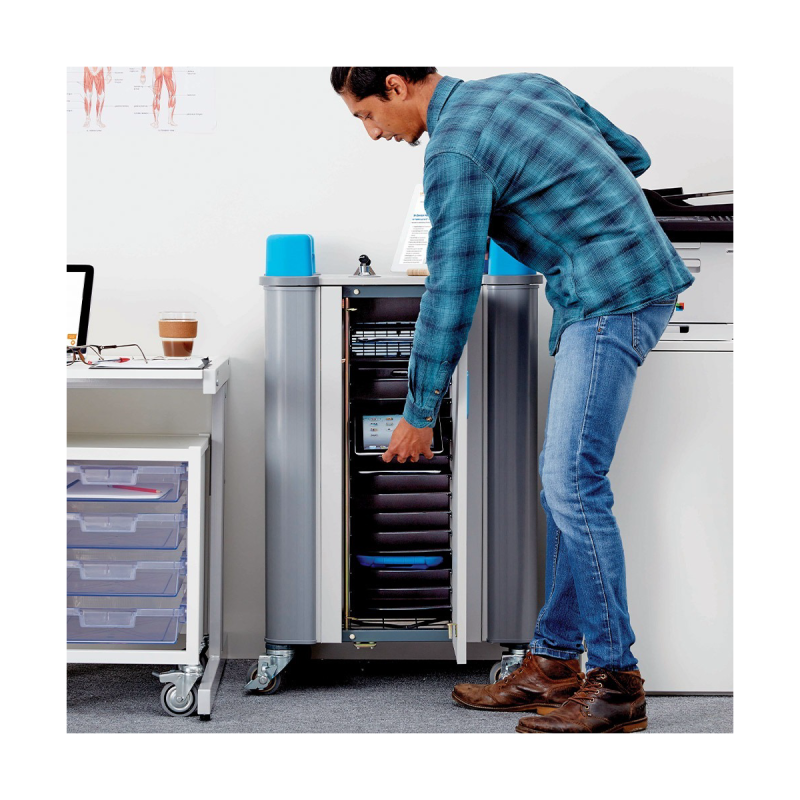

• The TabCabby 16 Horizontal Compact Charge & Sync charges 16 tablets up to 11″ screen size, including protective cases, plus mobile phones, POS, Kindle, Android, Surface or any other USB chargeable equipment via a 16 port USB A Hub.
• With horizontal storage shelves.
• Simultaneously charge & synchronise with the Boost+ 16-USB A managed hub mounted in the side of the cart, delivering high-speed charging and syncing saving time when deploying apps, media and content
• This unit charge, connect, manage & monitor the state of all ports and attached devices.
• It never overcharges as it detects when the device battery is full providing trickle charge.
• It is easy to move as it has ergonomic top handles, rounded corner bumpers and multi-directional non-marking wheels.

Device Protection

• Devices stored horizontally on fixed shelves for compact and protective storage
• Shelves are tilted back slightly to enable the device to shuffle into position and remain stable during movement
• Includes electrostatic discharge (ESD), over-voltage, over-current, and over-temperature protection

Charging

• Charges 16 USB tablets up to 11″ screen size – plus mobile phones, POS, e-readers, PDAs, scanners, or any other USB chargeable devices
• One Boost+ 16-USB A hub is clip-mounted in the side of the cart to power and sync devices and can be unclipped and used externally if required
• Auto-detects attached devices individually and automatically adjust the current output to the highest level permitted by the device manufacturer and USB specifications
• Once fully charged, trickle charging will commence at a rate equal to its self-discharge rate, enabling the battery to remain at 100%
• IEC socket with 1.8m / 6ft power cord designed to snap out if pulled away from the wall to prevent damage

Syncing

• Managed USB A hub/s delivers high-speed data transfer rates for syncing and works independently to the Operating System (OS), data transfer can be performed to all common mobile operating systems, such as iOS, Android, and Microsoft
• Simultaneously synchronise devices using MDM software such as Apple Configurator,  iTunes, and others, saving time when deploying apps, setting up profiles, media, and content – Boost+ is transparent to the MDM software and the host computer, the host computer recognises only the mobile devices
• Working independently to the OS you can charge, connect, manage and monitor the state of all ports and attached devices using the Cambrionix LiveViewer App
• Device ID and serial numbers can be associated with port number and charging data to reveal how much charge each device has received, whilst switching between charging and syncing modes
• Enables you to sync (data transfer) and charge the device at an enhanced rate that other USB hubs cannot, most UBS hubs charge devices at a trickle rate while syncing. Our hubs are built differently and offer the valuable feature of being able to charge devices while they are in sync mode
• Designed to provide a charge rate of approximately 1.5A in sync mode, by utilising the CDP (Charging Downstream Port) functionality built into our hubs and devices. A normal sync rate charge is 500mA. This is ideal if you need to leave devices connected to a host to sync and charge overnight, as it means they will charge whilst syncing and continue after the data transfer has completed, ensuring the device is fully charged when needed

Cable Management

• Cable clip portholes located on either side of each device storage shelf to ensure the cable is locked into position and free from damage
• Cables feed on side power compartment to front device compartment via cable clip portholes, preventing cables from being removed from the device compartment

Mobility

• Ergonomic wide grip ABS handles for light touch easy movement
• Fitted with large all directional swivel, non-marking hospital-grade rubber wheels (2 braked)
• A thick steel binding plate connects heavy duty wheels to the cart ensuring wheels never buckle or loosen
• Compact design with narrow space-saving footprint
• Rounded corners fitted with rubber corner bumpers and extrusions for shock absorption to prevent damage to walls and devices inside

Security & Protection

• Separate secured power compartment for ultimate safety and security
• Concealed lever unlocks side power compartments to enable clear access to cables and AC adaptors when required
• Built-in heat sensor will shut off power if a device overheats or if the interior temperature reaches 32C/90F degrees to prevent the risk of fire or damage to devices
• Silent ventilation system includes side and rear vents plus a uniquely designed weldmesh base to keep devices cool with constant air circulation without the need for a noisy fan that can spread germs
• Locking system mounted on the top surface to avoid keys snapping inside the lock during movement
• Dual point locking system, with keys provided, to secure at the top and bottom of both device and power compartment to prevent theft, damage, or tampering
• Inset door handles prevent protruding parts eliminating breakages
• Safety tested and certified by the independent Underwriters’ Laboratory (UL)

Set-Up

• Ships fully assembled with handles and wheels fitted
• Doors open wide for easy access to devices and cable management compartments
• Third-party software to synchronise devices is not supplied

Technical Specifications

• Unit Dimensions: W620 x D440 x H1000 mm / 24.4″ x 17.3″ x 39.4″
• Device compartment size: W230 x D335 x T40 mm / 9.1″ x 13.2″ x 1.6″
• AC pocket size: Feature not available
• Voltage compatibility: UK – 240 volts / USA & Canada – 120 volts
• Input frequency: 50 / 60 Hz
• Input cord lenght: 1.8 m / 6 ft
