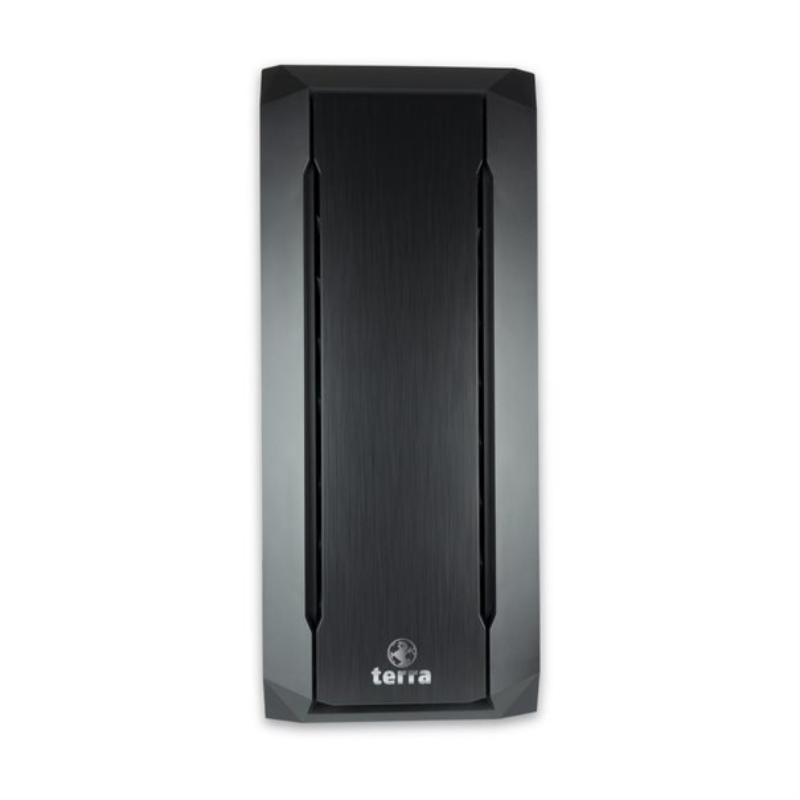

High-end workstation of the latest generation! Ideal for 3D simulations, visualization solutions, video editing, DTP, ray tracing and all high-performance applications. Increase your efficiency with TERRA workstations, equipped with NVIDIA RTX® graphics solutions of the current technology platform for professional graphics editing.
This high-end workstation performs the complex tasks assigned to it with new and current technologies, such as the AMD® Ryzen® processors and a fast PCIe 4.0 SSD storage medium. Thanks to Simultaneous Multithreading (SMT), the AMD Ryzen CPU of the Zen-2 platform provides the operating system and applications with twice as many logical and physical cores as the previous version. The result: significantly more speed when compiling, rendering and video compression.
Professional users rely on systems with NVIDIA RTX graphics processors for optimal results with applications such as Adobe CC, Avid Media Composer, Autodesk Inventor, Dassault Systems CATIA, SolidWorks, Siemens NX, ARCHICAD, PTC Creo and many more.
| General | |
| Processor model | AMD Ryzen™ 7 5800X processor, (8C/16T, 36 MB cache, 4.7 GHz boost) |
| Operating system | Windows 11 Pro |
| Software | |
| Pre-installed software | 1 month trial version for new Microsoft® 365 user |
| Processor | |
| Processor family | AMD Ryzen Threadripper |
| Processor cores | 24-Core |
| Number of processors | 1 |
| Memory | |
| Memory layout (slots x size) | 2 x 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5 SDRAM |
| Memory slots | 4 pc(s) |
| Storage | |
| Total storage capacity | 500 GB 500 GB |
| HDD interface | 4 x SATA-3 (6 Gb/s) |
| RAID levels | RAID 1 RAID 10 |
| Card reader integrated | SD/ SDHC/ SDXC |
| SSD interface | PCIe 5.0 |
| SSD capacity | 500 GB |
| HDD capacity | 1x 500 GB NVMe SSD |
| Number of storage drives supported | 4 x SATA-3 (6 Gb/s) 3 x M.2 1 x U.2 |
| Storage media | SSD M.2 |
| Performance | |
| Series | Workstation |
| Noise level | 25.9 dBA |
| Audio output channels | 5.1 HD Audio Codec |
| Motherboard chipset | AMD TRX50 |
| Design | |
| Chassis type | Tower |
| Certification | ISO 9001, Assembled in Germany Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC |
| Keyboard form factor | Optional |
| Keyboard | |
| Keyboard language | International |
| Device interface | USB |
| Technical details | |
| Localization | International |
| Field of use | AutoCad Inventor Revit Autodesk 3ds Max Autodesk Maya Adobe Illustrator Autodesk AutoCAD |
| Packaging content | |
| Included Accessories | Manual (DE/ EN/ FR/ PL), powercord EU |
| Expansion slots | |
| Expansion slots | 2 x PCIe 5.0 x16 slots1 x PCIe 5.0 x16 slot(x8 mode)1 x PCIe 4.0 x16 slot1 x PCIe 4.0 x16 slot(x4 mode) |
| Weight & dimensions | |
| Height | 59.7 cm |
| Width | 25.4 cm |
| Depth | 59.8 cm |
| Other features | |
| Number of drive bays | 1 front – 13.3 cm ( 5.25″ ) 4 internal – 8.9 cm ( 3.5″/ 2.5″ with Adapter) 5 internal 6.4 cm (2.5″ SSD) |
| Interface | 1 x DisplayPort 1 x HDMI 2 x LAN (RJ45) 1 x S/PDIF 5 x Audio 2 x USB 3.2 Gen 1 (up to 5Gbps) Type-A 4 x USB 3.2 Gen 2 (up to 10Gbps) Type-A 1 x USB 3.2 Gen 2 (up to 10Gbps) Type-C 1 x U.2 |
| Compatible operating systems | Windows 10, Windows 11 |
| Cooling type | Active |
| Compliance industry standards | CE, ISO 9001, Assembled in Germany Compatibility: PC2001, SMBios (DMI) 2.3, PCI 2.2,WFM 2.0, EnergyStar, EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC |
| Mouse | |
| Mouse included | TERRA wheel mouse optical |
| Graphics | |
| On-board graphics adapter memory | 5 GB |
| On-board graphics adapter maximum resolution | Digital Max resolution: 5120×2880 |
| Graphics card | NVIDIA Quadro P2200 |
| On-board graphics card model | PCI Express – plug-in-card – active cooling – single slot NVIDIA Quadro P2000 |
| Graphics adapter ports | 4x Display Port (DP) 4x Display Port (DP 1.4) |
| Power | |
| Power source | ATX power supply 80 Plus Gold, suitable for continuous operation 24-7 Energy efficiency (workload 20%/ 50% / 100 %): 87%/ 90% / 87% |
| Maximum input power | 650 Watt |
| Nominal power | Ø 50 Watt Idle Mode Ø 176 kWh a year (TEC = Typical Energy Consumption) Further information regarding Energy consumption see www.wortmann.de/green and/ or Quicklinks for this product (if available) |
| AC adapter input voltage | AC 100/240 V ( 50/60 Hz ) |
| Operational conditions | |
| Operating temperature (T-T) | 10 °C – 35 °C |
| Maximum operating temperature range (T-T) | 35 °C |
| Recommended humidity operating range | 10 – 75% (non-condensing) |
| Network | |
| Ethernet LAN | Network adapter – integrated |
| LAN controller | Marvell AQtion 10GB Intel I226-LM 2.5GB |
| Data link protocols | Ethernet Fast Ethernet Gigabit Ethernet |
| Optical drive | |
| Optical drive type | DVD±RW |
| Input device | |
| Movement detection technology | Optical |
| Device interface | USB |
