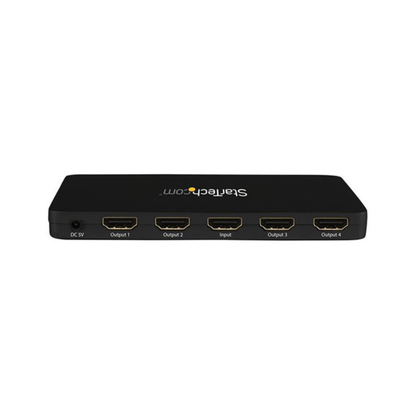

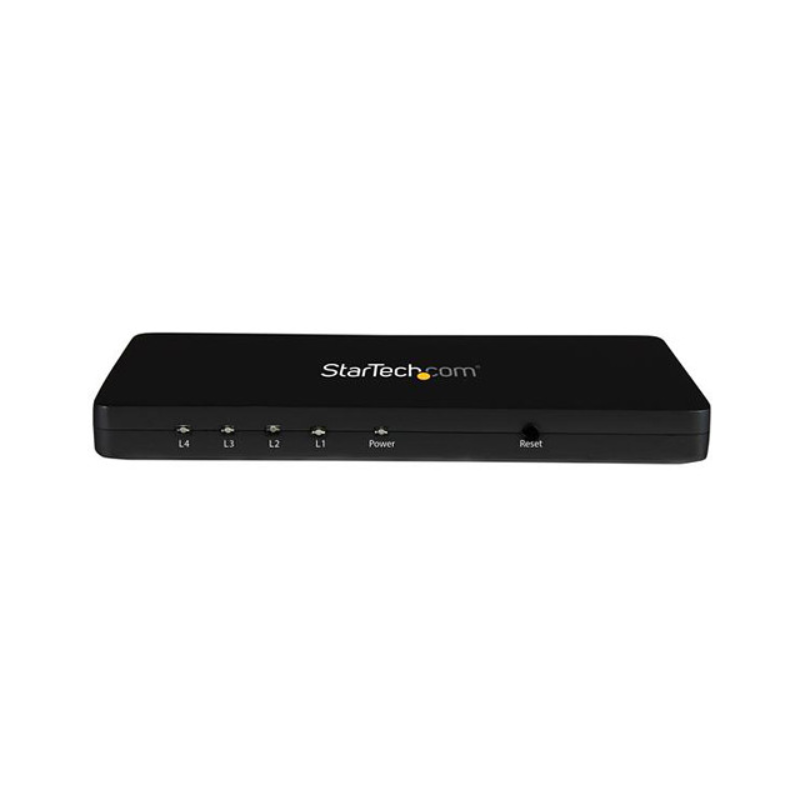

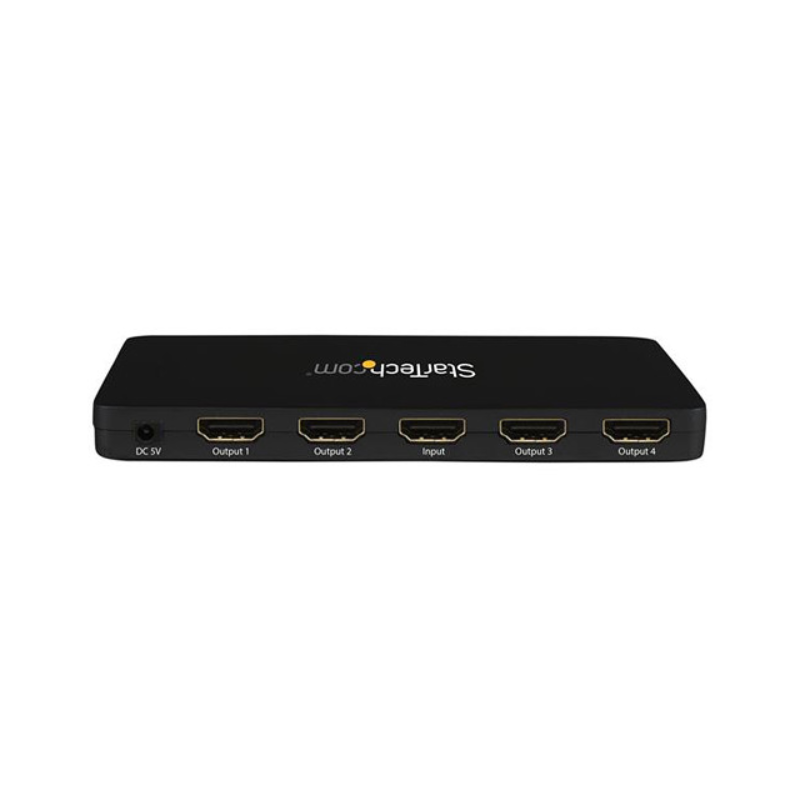

4-Port HDMI Automatic Video Switch with MHL Support - 4K 30Hz

The ST124HD4K 4-port 4K HDMI splitter lets you share four HDMI displays or projectors with an HDMI-enabled audio/video source device, such as a computer, Blu-ray player, or cable TV set-top box.

With support for Ultra HD (4K) the HDMI splitter ensures astonishing picture quality, four times the resolution of high-definition 1080p at 30 Hz. The 4K splitter is also backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices. Even if you don't require a 4K video today, the ST124HD4K ensures you'll be ready to take advantage of tomorrow's display technology.

Save time while setting up your splitter with EDID emulation ensuring all of your native settings such as resolution and refresh rate are communicated between your video source and displays. EDID emulation maximizes compatibility with your 4K display, ensuring a convenient plug-and-play installation.

Constructed of solid aluminum, the HDMI splitter casing is heavy enough to prevent the unit from shifting or sliding around when you move the attached HDMI cables. Plus, the small footprint allows for seamless integration into any digital signage application.

The ST124HD4K is backed by a StarTech.com 2-year warranty, and free lifetime technical support.

Connector(s)

• 1 - Connector A: HDMI (19 pin)
• 4 - Connector B: HDMI (19 pin)

Environmental

• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -10°C to 80°C (14°F to 176°F)
• Humidity: 5% to 90%

Hardware

• Ports: 4
• AV Input: HDMI
• AV Output: HDMI
• Audio: Yes
• Industry Standards: HDMI 1.4

Indicators

• 4 - LED Indicators: Active port LED
• 1 - LED Indicators: Power LED

Performance

• Maximum Cable Length: 16,4 ft [5 m]
• Maximum Digital Resolutions: 4K @ 30 Hz
• Supported Resolutions: 3840x2160 (4K), 2560x1600, 1920x1200, 1920x1080 (1080p), 1280x720 (720p)
• Wide Screen Supported: Yes
• Audio Specifications: 7.1 Surround sound

Physical Characteristics

• Weight of Product: 9,9 oz [280,0 g]
• Color: Black
• Product Length: 5,5 in [14,0 cm]
• Product Width: 3,3 in [85,0 mm]
• Product Height: 0,5 in [12,0 mm]

Power

• Power Source: AC Adapter IncludedInput Voltage: 100 - 240 AC
• Input Current: 0.35 A
• Output Voltage: 5 DC
• Output Current: 1 A
• Plug Type: H
• Power Consumption (In Watts): 5
