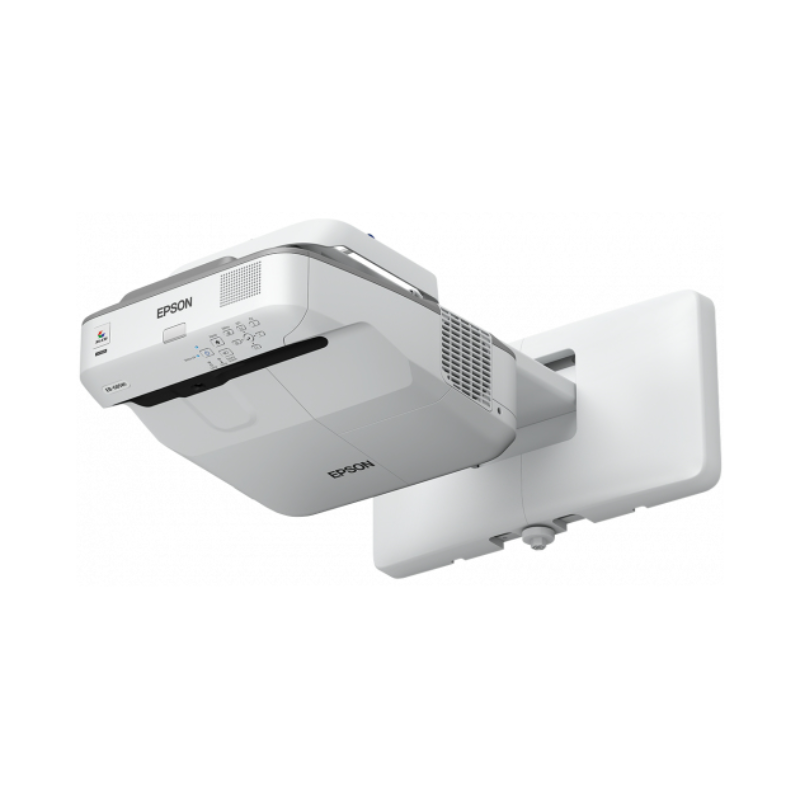

Epson EB-685W data projector Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) Grey, White

Name: Epson EB-685W data projector Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) Grey, White
Brand: GreenIT
SKU: V11H744041
Availability: InStock

Brand

: Epson

See The Full Spec >

Ready to Order?

Price calculated based on your needs

Due to the bespoke nature of this product, pricing varies depending on factors such as specifications, volume, and installation requirements. Please contact us for a quote.

Prices provided will include VAT where applicable.

Est. delivery: 08 Jun - 09 Jun

Item Shipping from: Ireland

Available

View full details

For Expert Advice contact sales.

Contact Sales

Find out more about this product.

Find out More

Available payment methods:

SKU: V11H744041

Tags: Projectors

Know someone who might like this?

Technical Specifications Recommendations Read More Related Products

Are you a Teacher?

Get access to discounted
prices with our Education Hub.

Find Out More

Do you need help with your order?

For any information or help,
our sales team are always at
your service.

Full Spec

Projector

Supported aspect ratios: 16:10
Screen size compatibility: 1524 - 2540 mm (60 - 100")
Projection distance: 0.4 - 0.6 m
Projection distance (wide): 0 - 0.4 m
Projection distance (tele): 0 - 0.6 m
Contrast ratio (dynamic): 14000:1
Projector brightness: 3500 ANSI lumens
Projection technology: 3LCD
Projector native resolution: WXGA (1280x800)
Contrast ratio (typical): 300:1
Native aspect ratio: 16:10
Number of colours: 1.073 billion colours
Projector brightness (economic mode): 2900 ANSI lumens
Keystone correction, horizontal: ±3°
Keystone correction, vertical: ±3°
Matrix size: 1.5 cm (0.59")

Light source

Light source type: Lamp
Service life of light source: 5000 h
Service life of light source (economic mode): 10000 h
Lamp power: 250 W

Lens system

Focus: Manual
Focal length range: 0 - 3.76 mm
Zoom capability: Yes
Zoom ratio: 1.35:1
Digital zoom: 1.35x

Video

Full HD: No
HD-Ready: Yes
3D compatibility: No
Video processing: 10 bit
Colour modes (2D): Cinema, Dynamic
Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB

Ports & interfaces

USB 2.0 ports quantity: 2
Audio (L/R) in: 1
Headphone outputs: 1
Microphone in: Yes
Serial interface type: RS-232
VGA (D-Sub) ports quantity: 3
HDMI ports quantity: 3
USB connector type: USB Type-A, USB Type-B
Composite video in: 1
DVI port: No
Mobile High-Definition Link (MHL): Yes
AC (power) in: Yes

Network

Ethernet LAN connection: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10, 100 Mbit/s

Storage

Card reader integrated: No

Features

Noise level (economic mode): 28 dB
On Screen Display (OSD): Yes
Noise level: 35 dB
Air filter: Yes
2D/3D frequency image: 100 - 120 Hz
Password protection: Yes

Multimedia

Built-in speaker(s): Yes
RMS rated power: 16 W
Number of built-in speakers: 1

Design

Product type: Ultra short throw projector
Product colour: Grey, White
Placement: Wall
Cable lock slot: Yes
Cable lock slot type: Kensington

Display

Built-in display: No

Power

Power source: AC
Power consumption (typical): 354 W
Power consumption (standby): 0.39 W
Power consumption (PowerSave): 310 W
AC input voltage: 220 - 240 V
AC input frequency: 50 - 60 Hz

Software

Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Macintosh connectivity: Yes
Mac operating systems supported: Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage humidity: 10 - 90%

Weight & dimensions

Width: 367 mm
Depth: 400 mm
Height: 149 mm
Weight: 5.7 kg
