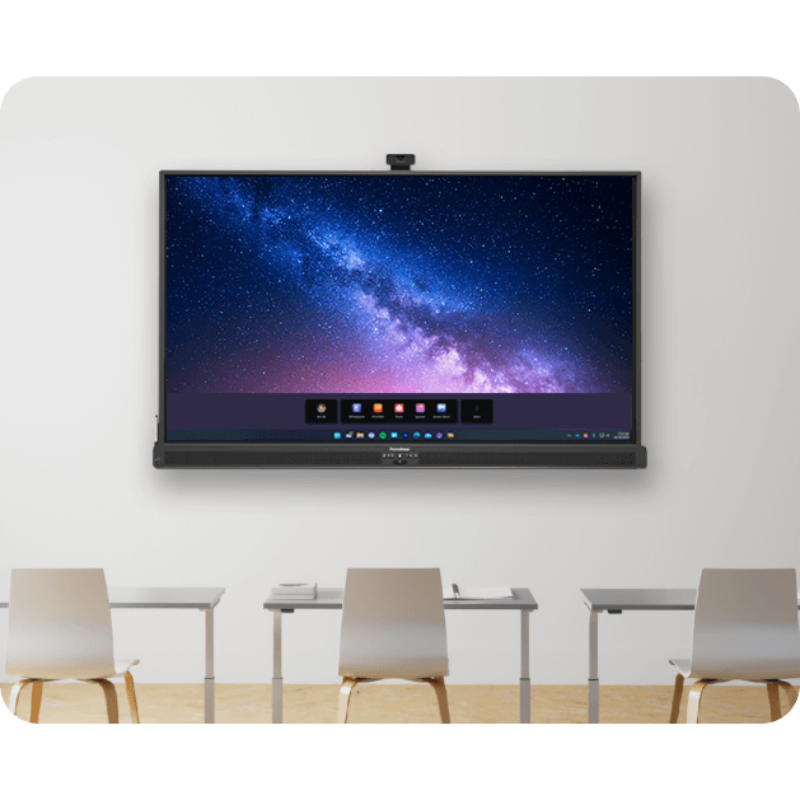

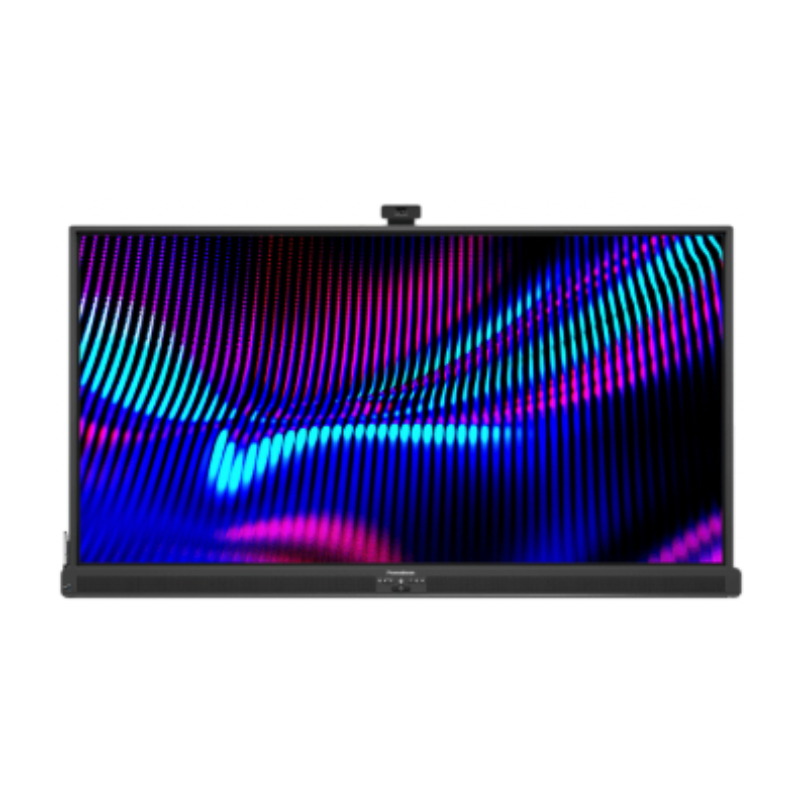

Promethean ActivPanel 10 Premium Interactive Board
Promethean ActivPanel 10 Premium Interactive Board
- Screen Size and Resolution: 55" 4K; UHD (3840 x 2160 @ 60 Hz), 65" 4K; UHD (3840 x 2160 @ 60 Hz), 75" 4K; UHD (3840 x 2160 @ 60 Hz), 86" 4K; UHD (3840 x 2160 @ 60 Hz)
- Backlight Technology: QLED - High Density Direct LED Backlight
- Full-Array Local Dimming: Yes
- Screen Type: TFT LCD
- Aspect Ratio: 16:9
- Display Area: 55": 1212 x 682 mm (47.7 x 26.9 in), 65": 1430 x 806 mm (56.3 x 31.7 in), 75": 1652 x 930 mm (65 x 36.6 in), 86": 1895 x 1066 mm (74.6 x 42 in)
- Display Colours: 1.07 Billion (10-bit)
- LCD Viewing Angle: 178°
- LCD Response Time: 8 ms
- LCD Refresh Rate (Panel): 60 Hz
- LED Lifespan: 50,000 hours
- Typical Max. Brightness: 55": 977 cd/m², 65": 942 cd/m², 75": 880 cd/m², 86": 1034 cd/m²
- Ambient Light Sensor: Yes
SKU: Promethean-AP10PREMIUM
Categories: Interactive Displays & Whiteboards
Tags: Interactive Boards Interactive Whiteboards Promethean Interactive Board
Know someone who might like this?
We want you to buy with confidence, so every device comes with a minimum 12-month warranty as standard. If something goes wrong with the hardware, and it's not down to accidental damage or everyday wear, we'll put it right by repairing or replacing it, at no cost to you. Not sure whether a fault is covered? Just get in touch and we'll help you work it out. You'll find the full details on our warranty page.
Changed your mind? That's no problem. You have 30 days from delivery to send your device back for a full refund. Just return it in the condition it arrived, with any accessories it came with, and once it's back with us and checked over, we'll get your refund sorted. If you'd like a hand starting a return, we're happy to walk you through it. Full details are on our returns page.
If something isn't working as it should, we're here to help. For warranty repairs and replacements, open a ticket through our repair centre and our team will take care of the rest. For anything else, whether it's a quick question or you just need a bit of guidance, you'll find all the ways to reach us on our contact us page. For the fastest way to talk to a real member of the team, use the chat in the bottom right of any page.
With our new software, your favourite ActivPanel engagement apps are accessible on your device to use at and away from the panel. Hello, enhanced freedom and flexibility!
An industry-leading display
Get the full picture with reduced reflection, every-angle views, highly accurate colour, and true-black contrast thanks to optical bonding, QLED, and FALD1. All that, and it saves energy.
High tech, low footprint
ActivPanel 10 is Energy Star Certified, durably designed, consumes less power2, and comes with less packaging.
Picture-in-picture
Easily integrate media and play videos in a small window while continuing to use other windows.
Full Array Local Dimming (FALD)
An industry-leading display, true black and high contrast visuals provide a clearer, more vibrant image.
8-array mic and speakers
Boost participation by using the panel’s built-in soundbar and 8-array mic.
- Screen Size and Resolution: 55" 4K; UHD (3840 x 2160 @ 60 Hz), 65" 4K; UHD (3840 x 2160 @ 60 Hz), 75" 4K; UHD (3840 x 2160 @ 60 Hz), 86" 4K; UHD (3840 x 2160 @ 60 Hz)
- Backlight Technology: QLED - High Density Direct LED Backlight
- Full-Array Local Dimming: Yes
- Screen Type: TFT LCD
- Blue Light Reduction: Yes
- Optical Bonded Glass: Yes
- Aspect Ratio: 16:9
- Display Area: 55": 1212 x 682 mm (47.7 x 26.9 in), 65": 1430 x 806 mm (56.3 x 31.7 in), 75": 1652 x 930 mm (65 x 36.6 in), 86": 1895 x 1066 mm (74.6 x 42 in)
- Display Colours: 1.07 Billion (10-bit)
- LCD Viewing Angle: 178°
- LCD Response Time: 8 ms
- LCD Refresh Rate (Panel): 60 Hz
- LED Lifespan: 50,000 hours
- Static Contrast Ratio (up to): 16,500:1
- Dynamic Contrast Ratio (up to): 900,000:1
- Typical Max. Brightness: 55": 977 cd/m², 65": 942 cd/m², 75": 880 cd/m², 86": 1034 cd/m²
- Ambient Light Sensor: Yes
- Glass Hardness: 9H (pencil), 7 (Mohs)
- Glass Type: Heat tempered
- Glass Thickness: 3.2 mm
- Glass Coating: Anti-Glare, Anti-Fingerprint, Anti-Smudge
- Operating System: No OS - Secure by Design
- Compatible Promethean Devices: OPS-M, OPS-A, Chromebox
- Integrated Soundbar: 2 x 25 W + 20 W Subwoofer(Subwoofer not included on 55")
- Integrated Microphone: 8 Mic Array
- Vellum Touch Technology: Yes
- Continuous Touch Points: 50
- Touch Resolution: 32768 x 32768 px
- Touch Response Time: 3 ms
- Touch Accuracy: >1 mm
- Scan Rate: 500 Hz
- Gesture and Edge Swipes: Windows® supported
- Unique Pen IDs: 3
- Pen and Touch Differentiation: Yes
- Palm Erase: Yes
- Palm Rejection: Yes
- Writing-hand Palm Rejection: Yes
- Pens Included: 2 x Passive battery-less pens, 1 x Active pen
- Integrated Wireless Active Pen Charger: Yes
- Active Pen Features: Air Mouse, Pressure Sensitive Hand Writing, Red Dot Highlighter, Pagination Control
- Pen Holder: Integrated full-length pen tray and side pockets
- Pen Tip Diameter: 3 mm
- Pen Eraser Diameter: 7 mm
- Touch-enabled PiP: Yes
- Compatibility: Windows® 10 and 11; macOS® Ventura 13 and Sonoma 14; Linux® Ubuntu 22.04 to 24.04 LTS;
- ChromeOS™; Android 14
- OPS Slot: 1
- HDMI In (Rear): 2 x 2.1
- Display Port: 1 x 1.4
- USB-A (Rear): 3 x 3.2 Gen 1
- USB-A (Rear): 1 x 2.0
- USB-B (Touch, Rear): 3 x 3.0
- USB-C (Rear): 1 x 3.2 Gen 1 (100 W Power Delivery)
- USB-A (Front): 1 x 3.2 Gen 1
- USB-C (Front): 1 x 3.2 Gen 1 (65 W Power Delivery)
- USB-A (Top): 1 x 3.0
- USB-C (Top): 1 x 3.0
- USB-C Out: 1 x 3.0
- HDMI Out: 1 x 2.0
- LAN In (RJ45): 10/100/1000
- LAN Out (RJ45): 10/100/1000
- Wake-on-LAN: Yes
- S/PDIF: Optical
- Audio Out (3.5 mm): 1
- Serial (RS232): 1
- Power Requirements 100 V - 240 V AC
- Max. Energy Star Reported Luminance 500 cd/m²: 55": 68 W, 65": 89 W, 75": 106 W, 86": 117W
- Power Consumption (Standby): <= 0.5 W
- Ultra-quiet Fanless Design: Yes
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: -15 °C to 55 °C
- Operating Humidity: 20% to 80% non-condensing humidity
- Storage Humidity: 20% to 90% non-condensing humidity
- Panel Dimensions: 55": 1266 x 103 x 809 mm (49.8 x 4.1 x 31.9 in), 65": 1489 x 107 x 935 mm (58.6 x 4.2 x 36.8 in), 75": 1710 x 107 x 1060 mm (67.3 x 4.2 x 41.7 in), 86": 1955 x 107 x 1197 mm (77 x 4.2 x 47.1 in)
- Panel Net Weight: 55": 29.2 kg (64.4 lbs), 65": 39.4 kg (86.9 lbs), 75": 51.4 kg (113.3 lbs), 86": 67.9 kg (149.7 lbs)
