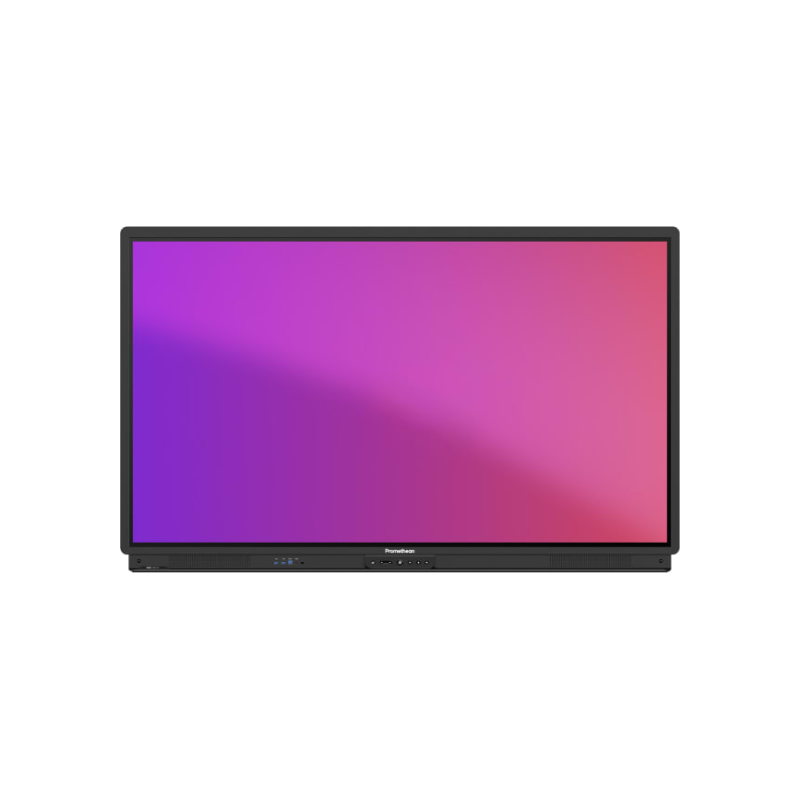

Promethean ActivPanel 9 Interactive Board

ActivPanel 9 offers a whole host of advanced features that provide an exceptional user experience. Our easy and intuitive interface allows teachers to get started the moment they switch on their panel. Users can customise their settings and take them wherever they go. And enhanced security ensures all personal data is protected.

Connectivity

ActivPanel 9 makes it easy for you to teach your way, whether you connect your device or use one of our computing options. It will quickly become the central hub of your classroom.

• Use a single cable USB-C connection for audio, video, touch interactivity, and charging.
• Connect up to 39 student devices with our device agnostic Screen Share app and share up to four
  student screens on the panel.
• Control the panel from anywhere in the classroom with our intuitive remote.

Simplicity

Designed to allow teachers to focus on teaching, not technology.

• Tailor the look of your panel with your Promethean profile, so it looks the same every time you sign in.
• Create shortcuts and customise the layout of the menu and apps for a truly personalised experience.
• Enhance your teaching with Promethean?s intuitive Classroom Essential apps.

Security

Rest assured that personal data is kept safe and confidential with enhanced security and sign-in options.

• Create a Promethean account using your Microsoft or Google credentials.
• Enjoy easy and secure sign-in using a dedicated app with a panel-specific code or QR code.
• Store data in your cloud-based Promethean profile, not on the panel.

Adaptability

ActivPanel 9 helps schools provide students with optimal educational experiences in all learning environments.

• Capture a snippet or record an entire lesson and easily share with students.
• Use Screen Share for real-time collaboration and communication in classroom, hybrid, and blended learning situations.
• Work seamlessly with Microsoft 365 and Google Workspace.

Longevity

With its robust design, enhanced hardware components, and multiple sustainability features, ActivPanel 9 offers
true peace of mind for your investment.

• Apply over-the-air (OTA) updates, the latest security features, and our newest panel software offerings
  using Promethean Panel Management or Radix.
• Achieve all-important energy efficiencies with power management settings.
• Enjoy durable toughened glass, best-in-field writing and viewing experiences.

Technical Specifications
Display

• Screen Size and Resolution: 65" 4K; UHD (3840 x 2160 @ 60 Hz), 75" 4K; UHD (3840 x 2160 @ 60 Hz), 86" 4K; UHD (3840 x 2160 @ 60 Hz)
• Screen Type: TFT LCD (Direct LED Backlight)
• Blue Light Reduction: Yes
• Bonded Glass: Yes
• Aspect Ratio: 16:9
• Display Area: 65" 4K: 1429 x 804 mm (56.3 x 31.7 in), 75" 4K: 1652 x 930 mm (65 x 36.6 in), 86" 4K: 1895 x 1066 mm (74.6 x 41.9 in)
• Display Colours: 1.07 Billion (10-bit)
• LCD Viewing Angle: 178°
• LCD Response Time: 8 ms
• LCD Refresh Rate (Panel): 60 Hz
• LED Lifespan: 50,000 hours
• Contrast Ratio: 5000:1 Dynamic 1200:1 Static
• Brightness: 400 cd/m2
• Ambient Light Sensor: Yes
• Glass Hardness: 9H (pencil) , 7 (Mohs)
• Glass Type: Heat tempered, Anti-Glare
• Glass Thickness: 4 mm

Interactivity

• Vellum Touch Technology: Yes
• Continuous Touch Points: 20
• Touch Resolution: 32768 x 32768 px
• Response Time: 10 ms
• Touch Accuracy: 1 mm
• Tracking Rate: 4 m/s
• Scan Rate: 200 Hz
• Gestures and Edge Swipes: Windows supported
• Unique Pen IDs: 1
• Pen and Touch Differentiation: Yes
• Palm Erase: Yes
• Palm Rejection: Yes
• Pens Included: Yes, 2
• Pen Type: Battery-less pen
• Pen Holder: Integrated full-length pen tray
• Pen Tip Diameter: 3 mm
• Classroom Essential Apps: Including Whiteboard, Annotate, Timer, Spinner, Screen Capture, Screen Share, Browser, PDF Reader, Media Player
• Compatibility: Windows 7 to 11; Mac OS 10.8 to 10.11; macOS Sierra 10.12.1 or later; Linux Ubuntu 20.04 LTS; Chrome OS™

Computing

• Operating System: ActivPanel OS
• RAM: 4 GB
• Internal Storage: 32 GB
• CPU: ARM CORTEX - A73 x 4
• GPU: ARM Mali-G71 MP3
• Trusted Platform Module: Yes
• Cloud Based User Profiles: Yes

Audio

• Dual Front-facing Speakers: 2 x 15 W

Connectivity

• OPS Slot: 1
• HDMI In (Rear): 2 (2.0)
• HDMI In (Front): 1 (2.0)
• Display Port: 1 (1.2)
• USB-A 2.0 (Rear): 1
• USB-C 3.2 (Rear): 1 (60 W Power Delivery)
• USB-B 3.0 (Touch, Front): 1
• USB-B 3.0 (Touch, Rear): 3
• USB-A 3.0 (Front): 2
• USB-A 3.0 (Rear): 2
• MicroSD Slot: Yes
• LAN In (RJ45): 1 Gbps
• LAN Out (RJ45): 1 Gbps
• Wake-on-LAN: Yes
• Wi-Fi (Client): IEEE 802.11 a/b/g/n/ac/ax, Wi-Fi 6 and dual band supported
• Bluetooth: 5.0
• HDMI Out: 1 (2.0)
• AV-In (3.5 mm): 1
• Mic (3.5 mm): 1
• Audio Out (3.5 mm): 1
• RS-232: 1

Panel Management

• OTA Updates: Yes
• Promethean Panel Management: Yes

Power

• Power Requirements: 100 V - 240 V AC
• Energy Star Power Consumption: 65" 4K: 128 W, 75" 4K: 141 W, 86" 4K: N/A
• Power Consumption (Standby): <= 0.5 W
• Ultra-Quiet Fanless Design: Yes

Environmental

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -15 °C to 55 °C (-5 °F to 131 °F)
• Operating Humidity: 20% to 80% non-condensing humidity
• Storage Humidity: 20% to 90% non-condensing humidity

Physical Specifications

• Panel Dimensions: 65": 1509 x 946 x 113 mm (59.4 x 37.2 x 4.4 in)
  75": 1730 x 1070 x 113 mm (68.1 x 42.1 x 4.4 in)
  86": 1975 x 1208 x 113 mm (77.8 x 47.6 x 4.4 in)
• Panel Net Weight: 65": 43.2 kg (95.3 lb)
  75": 55.3 kg (121.9 lb)
  86": 69.6 kg (153.4 lb)
• Wall Mount Dimensions: 1010 x 720 x 52 mm (39.8 x 28.3 x 2.0 in)
• VESA Mount Point: 65": 600 x 400 mm (23.6 x 15.7 in)
  75": 800 x 400 mm (31.5 x 15.7 in)
  86": 800 x 600 mm (31.5 x 23.6 in)
